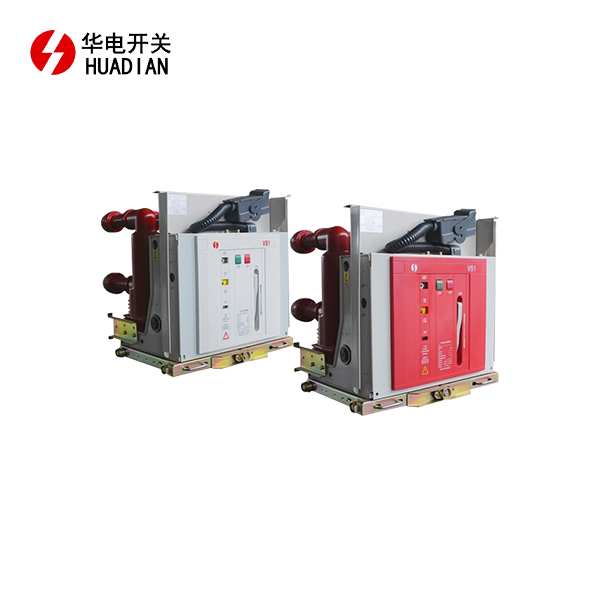

Essential Components of Vacuum Circuit Breakers
Vacuum Interrupter: The Heart of the Breaker
The vacuum interrupter is the core component of a vacuum circuit breaker, responsible for the actual current interruption process. It consists of a sealed chamber containing a fixed contact and a movable contact. The chamber is evacuated to create a high-vacuum environment, typically around 10^-6 torr. This vacuum condition allows for rapid arc extinction and prevents air ionization, enabling efficient current interruption. The contacts are usually made of copper-chromium alloy, which offers excellent conductivity and arc resistance. When the breaker opens, the movable contact separates from the fixed contact, creating an arc that is quickly extinguished in the vacuum environment.
Operating Mechanism: Powering the Breaker's Actions
The operating mechanism is responsible for opening and closing the vacuum interrupter contacts. It can be spring-operated, hydraulic, or pneumatic, depending on the specific design and application requirements. Spring-operated mechanisms are common due to their reliability and simplicity. They store energy in a spring, which is released to provide the necessary force for contact separation or closure. The mechanism also includes linkages, levers, and damping devices to ensure smooth and controlled operation. Some advanced vacuum circuit breakers incorporate motor-wound spring mechanisms, allowing for remote operation and enhanced automation capabilities.
Insulating Enclosure: Safeguarding the Internal Components
The insulating enclosure houses and protects the vacuum interrupter and other internal components of the circuit breaker. It is typically made of high-quality epoxy resin or other insulating materials that provide excellent dielectric strength and mechanical protection. The enclosure serves multiple purposes, including maintaining the vacuum integrity of the interrupter, preventing moisture ingress, and ensuring operator safety. Some designs incorporate transparent viewing windows, allowing for visual inspection of the contact position without compromising the enclosure's integrity. The insulating enclosure also contributes to the overall compact design of vacuum circuit breakers, making them suitable for installation in confined spaces.
Key Features of Vacuum Circuit Breakers
Rapid Arc Extinction and Current Interruption
One of the most significant features of vacuum circuit breakers is their ability to extinguish arcs rapidly. In a vacuum environment, the arc is diffuse and unstable, leading to quick deionization at current zero. This results in a remarkably fast current interruption time, typically less than 10 milliseconds. The rapid arc extinction minimizes thermal stress on the contacts and surrounding components, enhancing the breaker's longevity and reliability. Additionally, the fast interruption capability makes vacuum circuit breakers particularly effective in limiting fault currents, thereby reducing potential damage to downstream equipment in the event of a short circuit.
Minimal Maintenance Requirements
Vacuum circuit breakers are renowned for their low maintenance needs, a feature that significantly reduces operational costs and downtime. The sealed vacuum interrupter eliminates the need for oil or gas insulation, which are common in other types of circuit breakers and require periodic replacement or refilling. The absence of oil also eliminates the risk of leaks and associated environmental concerns. The contacts in a vacuum interrupter experience minimal wear due to the absence of oxidation and contamination in the vacuum environment. This results in an extended operational life, with many vacuum circuit breakers capable of performing tens of thousands of operations before requiring maintenance. Routine maintenance typically involves simple visual inspections and occasional lubrication of mechanical parts in the operating mechanism.
Compact Design and Versatility
The compact nature of vacuum circuit breakers is a key feature that sets them apart from other types of circuit breakers. The vacuum interrupter's efficient arc extinction allows for smaller contact gaps and overall reduced dimensions. This compact design makes vacuum circuit breakers ideal for applications where space is at a premium, such as in crowded substations or industrial switchgear rooms. The smaller size also contributes to reduced material costs and easier installation. Despite their compact size, vacuum circuit breakers offer high voltage and current ratings, typically ranging from 3.6 kV to 40.5 kV and up to 4000 A. This versatility allows them to be used in a wide range of medium-voltage applications, including power distribution systems, industrial plants, and renewable energy installations.
Advanced Features and Innovations in Vacuum Circuit Breakers
Smart Diagnostics and Condition Monitoring
Modern vacuum circuit breakers are increasingly equipped with advanced diagnostic and monitoring capabilities. These features utilize sensors and digital technologies to continuously assess the breaker's performance and health. Parameters such as contact wear, operating times, and mechanical stress are monitored in real-time. This data is then processed using sophisticated algorithms to predict potential issues before they lead to failures. Smart diagnostics enable predictive maintenance strategies, allowing operators to schedule maintenance activities based on actual equipment condition rather than fixed intervals. Some advanced systems even incorporate machine learning algorithms that improve their predictive accuracy over time, further enhancing the reliability and availability of the circuit breaker.
Enhanced Environmental Compatibility
Vacuum circuit breakers are inherently more environmentally friendly than their oil or gas-insulated counterparts. However, recent innovations have further improved their environmental compatibility. Some manufacturers now use eco-friendly materials in the construction of insulating enclosures and other components. These materials are designed to be recyclable at the end of the breaker's life cycle, reducing waste and environmental impact. Additionally, the development of more efficient operating mechanisms has led to reduced energy consumption during breaker operation. Some designs incorporate energy recovery systems that capture and store the kinetic energy released during contact separation, further improving energy efficiency.
Integration with Smart Grid Technologies
As power systems evolve towards smart grid architectures, vacuum circuit breakers are being adapted to play a crucial role in these advanced networks. Modern vacuum circuit breakers can be equipped with communication interfaces that allow seamless integration with SCADA (Supervisory Control and Data Acquisition) systems and other smart grid components. This integration enables remote monitoring, control, and coordination of circuit breakers across the power network. Advanced protection schemes, such as adaptive protection algorithms, can be implemented using the data provided by these intelligent circuit breakers. This enhanced level of control and coordination contributes to improved grid stability, faster fault isolation, and more efficient power distribution.
Conclusion
Vacuum circuit breakers represent a pinnacle of innovation in electrical protection technology. Their unique components and advanced features make them indispensable in modern power systems. The combination of rapid arc extinction, minimal maintenance requirements, and compact design offers significant advantages in terms of reliability, cost-effectiveness, and space efficiency. As power systems continue to evolve, vacuum circuit breakers are adapting with smart diagnostics, enhanced environmental compatibility, and integration with smart grid technologies. These advancements ensure that vacuum circuit breakers will remain at the forefront of electrical protection solutions, playing a crucial role in maintaining the safety and efficiency of power networks worldwide.
