Different Types of Dual Power Automatic Transfer Switches Explained

A sudden power outage can halt your operations, disrupt critical systems, or even jeopardize safety. This is where a dual power automatic transfer switch (ATS) becomes indispensable. These ingenious devices ensure seamless transitions between primary and backup power sources, keeping your systems running smoothly. However, not all dual power automatic transfer switches are created equal - there are distinct types, each tailored to specific needs. Broadly, they fall into three categories: open transition, closed transition, and delayed transition switches. Each type offers unique advantages depending on the application, whether it's for industrial facilities, data centers, or healthcare institutions. Let's explore the fascinating world of these power management marvels.

Understanding the Basics of Dual Power Automatic Transfer Switches

What Exactly Is a Dual Power Automatic Transfer Switch?

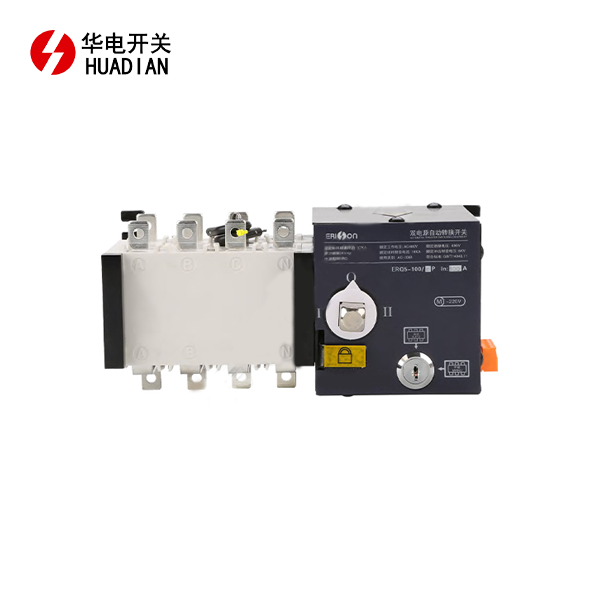

At its core, a dual power automatic transfer switch is a sophisticated device designed to monitor and manage power sources. When the primary power supply falters - due to outages, voltage drops, or other anomalies - the ATS swiftly shifts the load to a backup source, such as a generator or secondary utility feed. This transition happens automatically, without human intervention, ensuring continuity. Think of it as a vigilant guardian, always ready to step in when the lights threaten to go out. These switches are pivotal in environments where even a momentary lapse in power can lead to significant financial losses or safety risks.

Why Are Dual Power Automatic Transfer Switches Essential?

The importance of these devices cannot be overstated, especially in today's power-dependent world. Industries like manufacturing, telecommunications, and healthcare rely on uninterrupted electricity to maintain operations, protect data, and safeguard lives. A dual power automatic transfer switch eliminates the vulnerabilities associated with power disruptions. Beyond reliability, these switches enhance energy efficiency by optimizing the use of available power sources. They also reduce downtime, which is crucial for businesses aiming to maintain productivity and customer trust. In essence, investing in a robust ATS is not just about backup - it's about resilience and operational excellence.

Key Components of a Dual Power Automatic Transfer Switch

To appreciate how these switches function, it's helpful to understand their anatomy. A typical ATS comprises several critical elements: the transfer mechanism, which physically shifts the load between power sources; the controller, which monitors power quality and triggers the switch; and the sensing circuitry, which detects faults in the primary source. Additionally, modern switches often include communication interfaces for remote monitoring and diagnostics, adding a layer of convenience and control. Together, these components form a cohesive system that ensures power transitions are smooth, safe, and efficient, tailored to the demands of diverse applications.

Exploring the Different Types of Dual Power Automatic Transfer Switches

Open Transition Transfer Switches: The Classic Choice

Open transition transfer switches, often referred to as "break-before-make" switches, are the most common type of ATS. In this configuration, the connection to the primary power source is broken before the backup source is engaged. This brief interruption - typically lasting milliseconds - ensures there's no overlap between the two sources, preventing potential short circuits or back-feeding. While this type is cost-effective and straightforward, it's best suited for applications where a momentary power loss is tolerable, such as in small commercial buildings or non-critical industrial setups. Its simplicity and reliability make it a popular choice for budget-conscious users seeking dependable power management.

Closed Transition Transfer Switches: Seamless Power Continuity

For environments where even a millisecond of downtime is unacceptable, closed transition transfer switches, including dual power automatic transfer switches, shine. Known as "make-before-break" switches, they allow the backup power source to connect before disconnecting the primary source, ensuring a seamless transfer with zero power interruption. This type is ideal for mission-critical applications, such as data centers, hospitals, and large-scale manufacturing plants, where uninterrupted power is non-negotiable. While closed transition switches are more complex and costly, their ability to maintain continuous power flow justifies the investment, especially in settings where downtime translates to significant operational or financial setbacks.

Delayed Transition Transfer Switches: Precision for Heavy Loads

Delayed transition transfer switches, or "center-off" switches, introduce a deliberate pause during the transfer process. Unlike open or closed transition switches, this type disconnects the load from both power sources for a predetermined interval - typically a few seconds - before connecting to the alternate source. This delay is particularly beneficial for systems with large inductive loads, such as motors or transformers, as it allows residual energy to dissipate, reducing the risk of inrush currents or equipment damage. Delayed transition switches are commonly used in industrial settings with heavy machinery, offering a balance between reliability and equipment protection, albeit with a brief power interruption.

Applications and Benefits of Dual Power Automatic Transfer Switches

Industries That Rely on Dual Power Automatic Transfer Switches

The versatility of dual power automatic transfer switches makes them indispensable across a wide array of sectors. In healthcare, they ensure life-saving equipment remains operational during outages. Data centers depend on them to protect sensitive servers and prevent data loss. Manufacturing facilities use them to keep production lines humming, while telecommunications networks rely on them to maintain connectivity. Even commercial buildings, such as hotels and shopping malls, benefit from ATS systems to enhance guest safety and comfort. Regardless of the industry, these switches provide a robust solution for managing power reliability in an increasingly electrified world.

Advantages of Implementing a Dual Power Automatic Transfer Switch

The benefits of integrating a dual power automatic transfer switch into your power infrastructure are manifold. Beyond the obvious advantage of uninterrupted power, these devices enhance system longevity by reducing wear on equipment caused by power fluctuations. They also improve safety by minimizing the risk of electrical faults during transitions. From a financial perspective, an ATS can save businesses from the costly repercussions of downtime, such as lost productivity, spoiled inventory, or damaged reputation. Moreover, modern switches often feature advanced diagnostics, allowing for proactive maintenance and further boosting operational efficiency.

Choosing the Right Type for Your Needs

Selecting the appropriate dual power automatic transfer switch requires careful consideration of your specific requirements. Factors such as the criticality of your load, the nature of your equipment, and your budget all play a role. For non-critical applications, an open transition switch may suffice, offering a cost-effective solution. If seamless power is paramount, a closed transition switch is the way to go, despite the higher cost. For heavy industrial loads, a delayed transition switch provides the necessary protection against electrical surges. Consulting with a power management expert can help tailor the solution to your unique operational demands.

Conclusion

Dual power automatic transfer switches are the unsung heroes of modern power management, ensuring continuity, safety, and efficiency across diverse industries. Whether you opt for an open, closed, or delayed transition switch, the key is to align the choice with your specific needs - be it cost, criticality, or equipment protection. By understanding the nuances of each type, you can make an informed decision that bolsters your operational resilience. Shaanxi Huadian Electric, with its state-of-the-art production capabilities, stands ready to deliver high-quality solutions tailored to your power management challenges.
