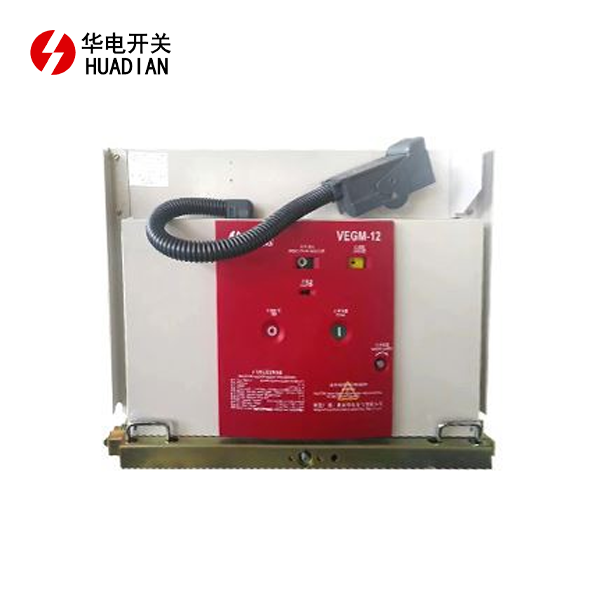

Technical Specifications of Vacuum Circuit Breakers
Rated Voltage and Current
The rated voltage of a vacuum circuit breaker is a critical parameter that determines its suitability for a particular electrical system. It represents the maximum voltage at which the breaker can operate safely and effectively. Vacuum circuit breakers are available in various voltage ratings, typically ranging from 3.6 kV to 40.5 kV for medium voltage applications.
Equally important is the rated current, which indicates the maximum continuous current the breaker can carry without overheating or damage. This parameter is usually expressed in amperes (A) and can range from a few hundred to several thousand amperes, depending on the specific application and system requirements.
Short-Circuit Breaking Capacity
The short-circuit breaking capacity is a crucial parameter that defines the maximum fault current a vacuum circuit breaker can interrupt safely. This capacity is typically expressed in kiloamperes (kA) and is a key factor in ensuring the protection of electrical equipment and personnel during fault conditions.
When selecting a vacuum circuit breaker, it's essential to choose one with a short-circuit breaking capacity that exceeds the maximum prospective fault current of the system. This ensures that the breaker can effectively interrupt and clear any potential short-circuit faults without compromising its integrity or the safety of the overall electrical installation.
Mechanical and Electrical Endurance
The mechanical endurance of a vacuum circuit breaker refers to its ability to withstand repeated opening and closing operations without mechanical failure. This parameter is typically expressed as the number of operations the breaker can perform under no-load conditions before requiring maintenance or replacement.
Electrical endurance, on the other hand, relates to the breaker's ability to interrupt rated currents and short-circuit currents over its lifetime. This parameter is usually specified as the number of operations the breaker can perform at its rated current and short-circuit breaking capacity.
Both mechanical and electrical endurance are crucial factors in determining the reliability and longevity of a vacuum circuit breaker, particularly in applications where frequent switching operations are required.
Environmental and Installation Considerations
Operating Temperature Range
The operating temperature range of a vacuum circuit breaker is a vital parameter to consider, especially for installations in extreme climates or challenging environments. Most vacuum circuit breakers are designed to operate reliably within a specific temperature range, typically from -25°C to +40°C.
However, some specialized models may offer extended temperature ranges for use in particularly hot or cold environments. It's crucial to select a breaker that can withstand the expected temperature fluctuations at the installation site to ensure consistent performance and longevity.
Altitude and Insulation Coordination
The altitude at which a vacuum circuit breaker will be installed can significantly impact its performance and insulation characteristics. As altitude increases, the air density decreases, which can affect the dielectric strength of the surrounding air and the breaker's insulation.
Most vacuum circuit breakers are rated for operation up to 1000 meters above sea level. For installations at higher altitudes, it may be necessary to derate the breaker's voltage rating or select a model specifically designed for high-altitude applications.
Insulation coordination is another critical aspect to consider, ensuring that the breaker's insulation levels are compatible with the overall system design and can withstand expected overvoltages and transients.
Ingress Protection (IP) Rating
The Ingress Protection (IP) rating of a vacuum circuit breaker indicates its ability to resist the ingress of solid particles and liquids. This rating is particularly important for outdoor installations or environments with high levels of dust, moisture, or other contaminants.
IP ratings are expressed as two digits, with the first digit representing protection against solid objects and the second digit indicating protection against liquids. For example, an IP65 rating signifies complete protection against dust ingress and protection against low-pressure water jets from any direction.
Selecting a vacuum circuit breaker with an appropriate IP rating ensures its reliable operation and longevity in challenging environmental conditions.
Advanced Features and Technologies
Smart Diagnostics and Monitoring
Modern vacuum circuit breakers often incorporate advanced diagnostic and monitoring features that enhance their reliability and simplify maintenance procedures. These smart technologies can provide real-time information on the breaker's status, performance, and potential issues.
Some key diagnostic features to look for include:
- Contact wear monitoring
- Operating mechanism status indicators
- Trip coil continuity monitoring
- Gas pressure monitoring (for SF6 breakers)
- Temperature and humidity sensors
These advanced monitoring capabilities enable predictive maintenance strategies, reducing downtime and extending the overall lifespan of the vacuum circuit breaker.
Interoperability and Communication Protocols
In today's increasingly interconnected electrical systems, the ability of vacuum circuit breakers to communicate with other devices and control systems is becoming increasingly important. When selecting a breaker, consider its compatibility with various communication protocols and its ability to integrate seamlessly into your existing or planned smart grid infrastructure.
Common communication protocols for vacuum circuit breakers include:
- IEC 61850
- Modbus
- DNP3
- PROFIBUS
Ensuring compatibility with these protocols can facilitate remote monitoring, control, and integration with substation automation systems, enhancing overall system efficiency and reliability.
Arc Interruption Technology
The heart of a vacuum circuit breaker's functionality lies in its arc interruption technology. While all vacuum circuit breakers utilize the principle of interrupting the arc in a vacuum, there can be significant differences in the specific technologies employed by different manufacturers.
Some advanced arc interruption features to consider include:
- Axial magnetic field (AMF) contacts for improved arc control
- Radial magnetic field (RMF) contacts for enhanced current interruption
- Advanced contact materials for reduced erosion and extended life
- Synchronized switching technology for minimizing transients
Evaluating these technological aspects can help in selecting a vacuum circuit breaker with superior performance and longer operational life.
Conclusion
Selecting the right vacuum circuit breaker is a critical decision that impacts the safety, reliability, and efficiency of your electrical system. By carefully considering the essential parameters discussed in this article, including technical specifications, environmental factors, and advanced features, you can make an informed choice that meets your specific requirements. Remember to evaluate not only the immediate needs of your system but also future expansion plans and technological advancements. Ultimately, investing time in thorough research and consultation with experts will lead to a vacuum circuit breaker selection that provides long-term value and performance for your electrical infrastructure.
