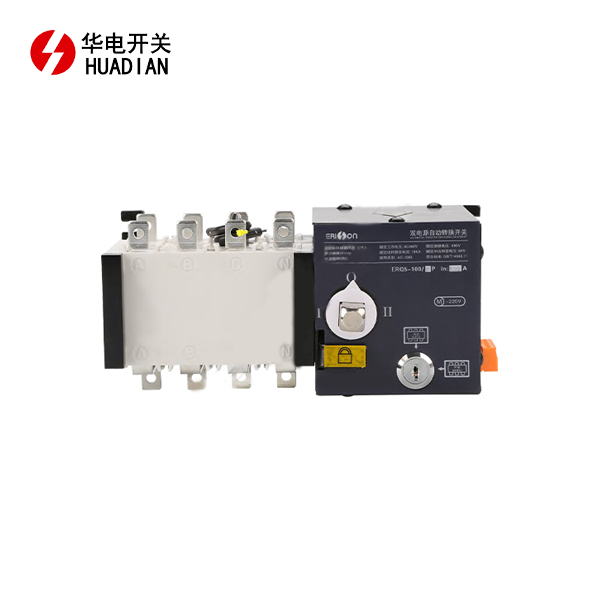

Understanding Dual Power Automatic Transfer Switches
Definition and Purpose
Dual power automatic transfer switches (ATS) are sophisticated electrical devices designed to monitor power sources and automatically switch between them when necessary. Their primary purpose is to ensure a continuous power supply by transferring loads between a primary power source and a backup source, typically a generator. This seamless transition is crucial for maintaining operations in critical facilities and preventing downtime due to power outages.
Components of Dual Power ATS
A typical dual power automatic transfer switch comprises several key components:
- Main contacts: These heavy-duty electrical contacts carry the load current and switch between power sources.
- Control unit: The brain of the ATS, it monitors power quality and initiates transfer when necessary.
- Power supply: Provides power to the control unit and other auxiliary components.
- Voltage sensors: Monitor voltage levels on both power sources.
- Auxiliary contacts: Provide status information and control signals to other equipment.
Understanding these components is essential for proper maintenance and troubleshooting of dual power ATS systems.Operating Principles
The operation of a dual power automatic transfer switch follows a specific sequence:
- Continuous monitoring of both power sources
- Detection of power failure or quality issues in the primary source
- Initiation of the backup power source (e.g., starting a generator)
- Transfer of the load to the backup source once it's stable
- Monitoring for the return of the primary power source
- Retransfer of the load to the primary source after a preset delay
This automated process ensures minimal disruption to power supply, making dual power ATS crucial for maintaining operational continuity in critical applications.Essential Specifications of Dual Power Transfer Switches
Voltage and Current Ratings
Voltage and current ratings are paramount specifications for dual power automatic transfer switches. These ratings determine the switch's compatibility with the electrical system and its capacity to handle the required load. Common voltage ratings include 120/240V for residential applications and 208V, 480V, or 600V for commercial and industrial use. Current ratings typically range from 30A to 4000A, depending on the application's power requirements. It's crucial to select a switch with ratings that match or exceed the system's maximum voltage and current to ensure safe and efficient operation.
Transfer Time
Transfer time is a critical specification that indicates how quickly the switch can transition the load from one power source to another. This is typically measured in cycles or milliseconds. For most applications, a transfer time of 100 milliseconds or less is considered acceptable. However, some sensitive equipment may require faster transfer times to prevent disruptions. Advanced dual power automatic transfer switches can achieve transfer times as low as 3-4 cycles (50-67 milliseconds at 60Hz). The importance of transfer time varies depending on the application, with critical systems like data centers or medical equipment often requiring the fastest possible transitions.
Number of Poles
The number of poles in a dual power automatic transfer switch is another crucial specification. It determines how many separate electrical conductors the switch can control simultaneously. Common configurations include:
- Two-pole: Suitable for single-phase systems, controlling the hot and neutral lines.
- Three-pole: Used in three-phase systems without a switched neutral.
- Four-pole: Handles three-phase systems with a switched neutral, providing added safety and versatility.
Selecting the appropriate number of poles ensures proper isolation and switching of all necessary conductors in the electrical system.Advanced Features and Considerations
Control Mechanisms and Interfaces
Modern dual power automatic transfer switches offer sophisticated control mechanisms and interfaces that enhance their functionality and user-friendliness. These features may include:
- Microprocessor-based controllers for precise timing and monitoring
- LCD displays for real-time status information and diagnostics
- Remote monitoring and control capabilities via Ethernet or other communication protocols
- Programmable time delays for customized operation sequences
- Data logging and event recording for maintenance and troubleshooting
Advanced control mechanisms not only improve the reliability of the switch but also provide valuable insights into system performance and potential issues.Environmental and Safety Ratings
Environmental and safety ratings are crucial considerations when selecting a dual power automatic transfer switch, especially for installations in challenging environments. Key ratings to consider include:
- NEMA ratings: Indicate the level of protection against environmental factors such as dust and moisture
- UL listing: Ensures compliance with safety standards set by Underwriters Laboratories
- Operating temperature range: Determines the switch's suitability for various climates and installation locations
- Seismic certification: Important for installations in earthquake-prone areas
- Altitude rating: Relevant for high-altitude installations where air density affects electrical equipment performance
Choosing a switch with appropriate environmental and safety ratings ensures reliable operation and compliance with local regulations.Maintenance and Testing Features
To ensure long-term reliability and performance, dual power automatic transfer switches should incorporate features that facilitate maintenance and testing. These may include:
- Built-in test modes for simulating power failures and transfers
- Easily accessible maintenance bypass switches
- Modular design for quick replacement of components
- Self-diagnostic capabilities to identify potential issues
- Exercise timers to periodically operate the switch and prevent seizing
Regular maintenance and testing are essential for keeping dual power ATS systems in optimal condition and ready to perform when needed.Conclusion
Understanding the must-know specifications of dual power transfer switches is crucial for selecting and implementing reliable power management solutions. From voltage and current ratings to advanced control features, each specification plays a vital role in ensuring seamless power transitions and system protection. By considering factors such as transfer time, number of poles, and environmental ratings, facility managers and engineers can make informed decisions that enhance operational continuity and safety. As power requirements continue to evolve, staying informed about these critical specifications will remain essential for maintaining robust and efficient electrical systems across various industries.
