How Does a Dual Power Transfer Switch Work?

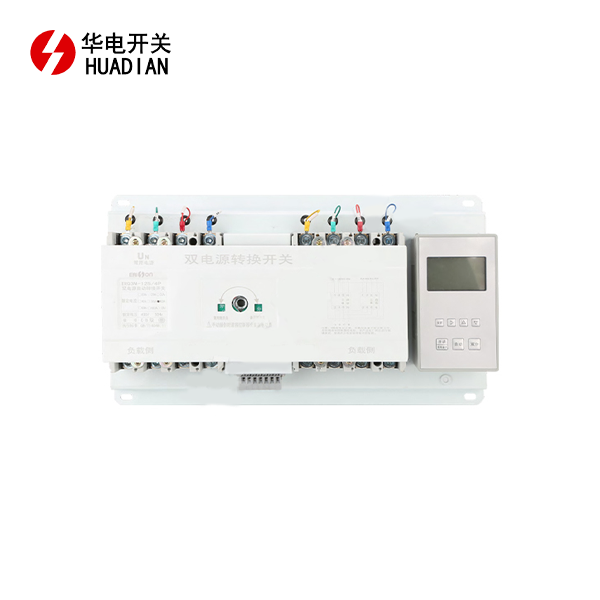

A dual power automatic transfer switch is a sophisticated device that ensures uninterrupted power supply by seamlessly switching between two power sources. It operates by continuously monitoring both primary and secondary power inputs. When the primary source fails or drops below acceptable levels, the switch rapidly transfers the load to the secondary source. This process happens automatically, typically within milliseconds, preventing power interruptions to critical equipment. The switch also manages the transition back to the primary source once it's restored, maintaining system stability. This intelligent switching mechanism is crucial for facilities requiring constant power, such as hospitals, data centers, and industrial plants, where even brief outages can have significant consequences.

Components and Functionality of Dual Power Transfer Switches

Essential Components

Dual power automatic transfer switches comprise several key components that work in harmony to ensure reliable power switching. The main contactor or switch mechanism is the heart of the device, responsible for physically connecting and disconnecting power sources. Voltage sensors continuously monitor both power inputs, while a control module interprets this data and makes switching decisions. Additionally, these switches often include time delay relays to prevent unnecessary switching due to momentary power fluctuations.

Operational Sequence

The operational sequence of a dual power automatic transfer switch is a carefully orchestrated process. It begins with constant monitoring of the primary power source. If a failure is detected, the switch initiates a brief time delay to confirm it's not a momentary glitch. Once confirmed, it signals the secondary source to start (if not already running), then disengages the primary source and engages the secondary. This entire process typically occurs within seconds, ensuring minimal disruption to connected equipment.

Advanced Features

Modern dual power automatic transfer switches often come equipped with advanced features that enhance their functionality. These may include programmable set points for voltage and frequency tolerances, allowing customization based on specific equipment needs. Some models offer remote monitoring capabilities, enabling operators to oversee switch status and performance from afar. Load shedding features can also be incorporated, automatically disconnecting non-essential loads during extended outages to conserve backup power for critical systems.

Applications and Benefits of Dual Power Transfer Switches

Critical Infrastructure Applications

Dual power automatic transfer switches play a crucial role in maintaining power continuity for critical infrastructure. In healthcare facilities, they ensure life-support systems and essential medical equipment remain operational during power outages. Data centers rely on these switches to prevent data loss and maintain server uptime. Industrial processes that require uninterrupted power, such as chemical plants or food processing facilities, also benefit greatly from the seamless power transition these switches provide.

Energy Management and Efficiency

Beyond their primary function of ensuring power continuity, dual power automatic transfer switches can contribute to energy management and efficiency. Some advanced models can be programmed to switch to a secondary power source during peak demand periods, helping to reduce electricity costs. This feature is particularly valuable in regions with time-of-use electricity pricing. Additionally, by ensuring optimal power quality and preventing equipment damage due to power fluctuations, these switches can indirectly contribute to overall energy efficiency by extending the lifespan of connected equipment.

Integration with Renewable Energy Systems

As renewable energy sources become more prevalent, dual power automatic transfer switches are evolving to accommodate these systems. They can be configured to prioritize power from renewable sources when available, switching to grid power only when necessary. This capability is particularly useful in microgrids or hybrid power systems that combine solar, wind, or other renewable sources with traditional grid power. By intelligently managing these diverse power sources, dual power automatic transfer switches play a key role in maximizing the use of clean energy while maintaining system reliability.

Maintenance and Considerations for Dual Power Transfer Switches

Regular Maintenance Protocols

To ensure the longevity and reliability of dual power automatic transfer switches, regular maintenance is essential. This typically includes visual inspections for signs of wear or damage, cleaning of contacts and cooling systems, and testing of control circuits. Lubrication of moving parts may also be necessary, depending on the switch design. Many manufacturers recommend annual comprehensive testing, which involves simulating power failures to verify proper operation. This proactive approach helps identify potential issues before they lead to system failures.

Sizing and Selection Criteria

Proper sizing of a dual power automatic transfer switch is crucial for optimal performance. Factors to consider include the total load to be supported, voltage and frequency requirements, and the characteristics of both primary and secondary power sources. The switch must be capable of handling the maximum potential load, including any inrush currents during motor startups. Environmental factors such as temperature, humidity, and altitude can also influence switch selection, particularly for outdoor installations or harsh industrial environments.

Future-Proofing and Upgrades

When installing or upgrading dual power automatic transfer switches, it's important to consider future needs. This may involve selecting a switch with higher capacity than currently required to accommodate potential load growth. Choosing a model with upgradeable firmware can also be beneficial, allowing for future feature enhancements without hardware replacement. Some advanced switches now offer modular designs, facilitating easier upgrades or repairs. Additionally, considering compatibility with emerging smart grid technologies and energy management systems can help ensure the switch remains relevant and efficient in the evolving energy landscape.

Conclusion

Dual power automatic transfer switches are indispensable components in ensuring reliable power supply across various critical applications. Their ability to seamlessly switch between power sources provides a robust solution for maintaining continuous operations in healthcare, data centers, industrial processes, and beyond. As energy systems evolve, these switches are adapting to integrate renewable sources and smart grid technologies, further enhancing their value in modern power management strategies. By understanding their functionality, applications, and maintenance requirements, organizations can leverage dual power automatic transfer switches to significantly improve their power reliability and operational resilience.
