How to Replace AC Contactor?

Replacing an AC contactor is a straightforward task if you follow the proper steps and prioritize safety. Begin by turning off the power supply to the unit at the circuit breaker to avoid electrical hazards. Next, locate the AC contactor within the system, typically found in the outdoor condenser unit. Remove the access panel, disconnect the wires (noting their positions), and unfasten the old contactor. Install the new contactor by securing it in place, reconnecting the wires exactly as they were, and reattaching the panel. Restore power and test the system to ensure it operates smoothly. Always use a compatible replacement part to guarantee optimal performance.

​​​​​​​

Understanding the AC Contactor and Its Role

What Exactly Is an AC Contactor?

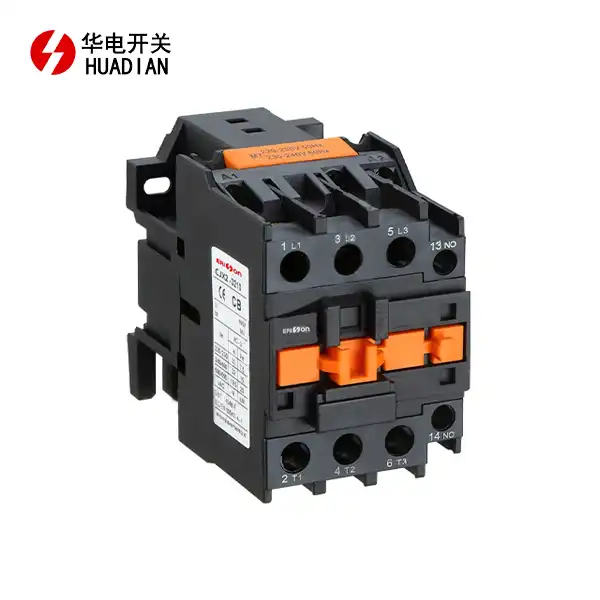

An AC contactor serves as a pivotal component in electrical systems, acting as a switch that controls the flow of electricity to various parts of an HVAC unit. Think of it as a gatekeeper, allowing or halting power to components like compressors and motors. This electromechanical device is designed to handle high-voltage currents, ensuring that your air conditioning system runs efficiently. Without a functioning contactor, your system could fail to start or stop, leading to potential damage or inefficiency. Recognizing its role helps underscore the importance of timely maintenance and replacement.

Why Does an AC Contactor Fail?

Over time, an AC contactor can succumb to wear and tear due to constant electrical arcing, environmental factors, or mechanical fatigue. Dust, debris, and moisture can infiltrate the unit, causing corrosion or pitting on the contact points. Excessive heat or voltage surges may also degrade its performance, leading to erratic operation or complete failure. In some cases, pests or rodents may interfere with the wiring, exacerbating the issue. Understanding these failure modes empowers you to take proactive measures, such as regular inspections, to extend the lifespan of this critical component.

Signs You Need to Replace Your AC Contactor

Identifying a faulty AC contactor early can save you from costly repairs. Listen for unusual humming or buzzing noises when the system attempts to start, as these sounds often indicate a struggling contactor. If your air conditioner fails to turn on or off, or if it cycles intermittently, the contactor may be to blame. Visually inspect the unit for signs of burning, pitting, or melted plastic around the contact points. A multimeter can also help diagnose issues by checking for continuity or irregular voltage. Addressing these symptoms promptly ensures your system remains reliable and efficient.

Step-by-Step Guide to Replacing an AC Contactor

Preparing for the Replacement Process

Before diving into the replacement, gather the necessary tools and materials to streamline the task. You'll need a screwdriver, a multimeter, a replacement AC contactor compatible with your system, and a camera or notepad to document wire connections. Safety gear, such as insulated gloves and goggles, is non-negotiable to protect against electrical hazards. Verify the power is disconnected by testing the circuit with a multimeter, ensuring no voltage is present. Taking these preparatory steps minimizes risks and sets the stage for a smooth replacement, allowing you to focus on the task without unnecessary interruptions.

Executing the Replacement with Precision

With the power off, access the AC contactor by removing the condenser unit's panel, typically secured with screws. Observe the existing contactor's wiring configuration, capturing a photo or sketching a diagram to ensure accurate reconnection. Carefully disconnect the wires, using a screwdriver to loosen terminals if needed, and remove the old contactor by unfastening its mounting screws. Position the new contactor in its place, securing it firmly, and reconnect the wires exactly as they were, matching each terminal to its corresponding wire. Double-check your work to avoid loose connections, which could lead to malfunctions or safety hazards.

Testing and Verifying the New Installation

Once the new AC contactor is installed, reattach the access panel and restore power to the system at the circuit breaker. Turn on the air conditioner and observe its operation, listening for smooth, consistent performance without unusual noises. Use a multimeter to measure voltage across the contactor's terminals, confirming it matches the system's specifications. Monitor the unit for several cycles to ensure it starts and stops reliably. This verification step is crucial to confirm the replacement was successful and that the system is functioning optimally, providing peace of mind and long-term reliability.

Best Practices for Maintaining Your AC Contactor

Routine Inspections to Prolong Lifespan

Regular maintenance is key to preventing unexpected failures of your AC contactor. Schedule periodic inspections, ideally biannually, to check for signs of wear, such as corrosion, pitting, or discoloration on the contact points. Clean the surrounding area to remove dust, debris, or insect nests that could interfere with operation. Use compressed air or a soft brush to gently clear away contaminants, avoiding harsh chemicals that might damage components. These proactive measures help maintain optimal performance, reducing the likelihood of sudden breakdowns and extending the service life of your contactor.

Choosing the Right Replacement Contactor

Selecting a compatible AC contactor is paramount to ensuring your system operates efficiently. Refer to your HVAC unit's manual or the existing contactor's label to identify the correct voltage, amperage, and pole configuration. Opt for high-quality components from reputable manufacturers to guarantee durability and performance. Avoid generic or mismatched parts, as they may lead to premature failure or system damage. If unsure, consult a professional or contact the supplier to confirm compatibility. Investing in the right contactor upfront saves time, money, and potential headaches down the road.

When to Seek Professional Assistance?

While replacing an AC contactor is manageable for those with basic electrical knowledge, certain situations warrant professional intervention. If you encounter complex wiring configurations, suspect broader system issues, or lack confidence in handling high-voltage components, enlist a certified technician. Professionals bring expertise and specialized tools to diagnose underlying problems, ensuring the replacement is executed safely and effectively. Additionally, if your system is under warranty, DIY repairs might void coverage, making professional service a wiser choice. Prioritizing safety and accuracy in these scenarios protects both you and your equipment.

Conclusion

Replacing an AC contactor is a practical skill that can save time and money while keeping your HVAC system running smoothly. By understanding its role, recognizing failure signs, and following a meticulous replacement process, you can maintain optimal performance. Routine inspections and choosing quality components further enhance reliability, reducing the risk of unexpected breakdowns. While many can handle this task independently, knowing when to call a professional ensures safety and efficiency. With these insights, you're well-equipped to tackle contactor issues confidently, ensuring your system remains dependable year-round.
