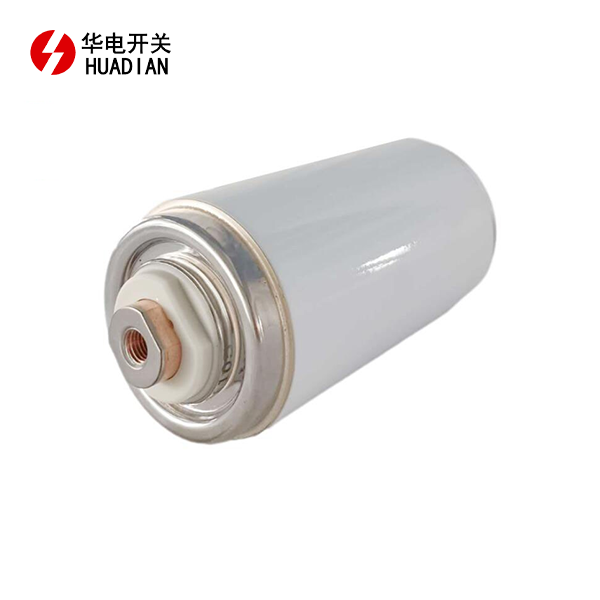

How Does the ERD-12/1250-25 Vacuum Interrupter Work?

The ERD-12/1250-25 vacuum interrupter operates by utilizing a sophisticated vacuum-sealed chamber to extinguish electric arcs swiftly and efficiently. When the contacts within the interrupter separate, an arc forms in the vacuum. The unique properties of the vacuum environment cause the arc to diffuse rapidly, effectively interrupting the current flow. This process occurs within milliseconds, making the ERD-12/1250-25 an exceptionally fast and reliable device for protecting electrical systems. The vacuum technology also allows for a compact design and extended operational lifespan, making it an ideal choice for various high-voltage applications in power distribution networks.

Understanding the Core Components of the ERD-12/1250-25 Vacuum Interrupter

The Vacuum Chamber: The Heart of the Interrupter

At the core of the ERD-12/1250-25 vacuum interrupter lies its vacuum chamber. This sealed environment is crucial for the device's operation. The chamber is meticulously designed to maintain an ultra-high vacuum, typically at pressures below 10^-7 torr. This near-perfect vacuum is essential for the interrupter's arc-quenching capabilities.

The vacuum chamber's walls are usually constructed from high-quality ceramic or glass materials. These materials are chosen for their excellent insulating properties and ability to withstand extreme temperatures. The chamber's design also incorporates metal-to-ceramic seals, ensuring a hermetic enclosure that maintains its integrity over thousands of operations.

Inside the chamber, you'll find the contacts - the movable and stationary electrodes. These contacts are typically made from advanced alloys, such as copper-chromium or copper-bismuth composites. The composition of these alloys is carefully engineered to withstand the high temperatures generated during arc formation and to minimize contact erosion over time.

The Operating Mechanism: Precision in Motion

The operating mechanism of the ERD-12/1250-25 vacuum interrupter is a marvel of engineering precision. This system is responsible for the rapid and accurate movement of the movable contact within the vacuum chamber. The mechanism typically employs a spring-operated or motor-driven system, capable of opening or closing the contacts in mere milliseconds. Key components of the operating mechanism include:

- Drive shaft: Transfers motion from the external actuator to the movable contact

- Bellows: A flexible, accordion-like structure that maintains the vacuum seal while allowing movement

- Springs: Provide the necessary force for rapid contact separation

- Dampers: Control the speed and impact of contact closure

The design of this mechanism ensures consistent performance over numerous operations, contributing to the reliability and longevity of the ERD-12/1250-25 vacuum interrupter.

Arc Control Systems: Managing the Electric Storm

The arc control system in the ERD-12/1250-25 vacuum interrupter plays a crucial role in managing the electric arc formed during contact separation. This system employs various techniques to control and extinguish the arc rapidly and efficiently.

One key feature of the arc control system is the specially designed contact geometry. The contacts often feature a spiral or radial pattern on their surface. This design encourages the arc to move continuously, preventing localized heating and erosion. As the arc moves, it's exposed to cooler surfaces, aiding in its extinction.

Additionally, the arc control system may incorporate magnetic field shaping techniques. By manipulating the magnetic field around the arc, the system can further control its behavior, leading to faster extinction and reduced contact wear.

Operational Principles of the ERD-12/1250-25 Vacuum Interrupter

The Arc Interruption Process: A Microscopic Ballet

The arc interruption process in the ERD-12/1250-25 vacuum interrupter is a complex phenomenon that occurs in a fraction of a second. When the contacts begin to separate, the current continues to flow through a small point of contact. As the separation increases, the current density at this point becomes extremely high, causing localized heating and vaporization of the contact material.

This vaporized metal forms a plasma, which conducts electricity and maintains the arc. However, in the vacuum environment, this plasma behaves differently than it would in air. The lack of gas molecules means there's no medium to sustain the arc once the current reaches a zero-crossing point in its AC cycle.

As the current approaches zero, the plasma rapidly loses its conductivity. The vacuum's excellent dielectric strength prevents the arc from re-striking, effectively interrupting the current flow. This entire process typically occurs within 10 milliseconds or less, showcasing the remarkable speed of the ERD-12/1250-25 vacuum interrupter.

Current Chopping: Precision Interruption

Current chopping is a phenomenon unique to vacuum interrupters like the ERD-12/1250-25. It refers to the interrupter's ability to interrupt current before it naturally reaches zero in its AC cycle. This capability is particularly useful in certain applications where rapid interruption is crucial.

The ERD-12/1250-25's design allows for controlled current chopping. By carefully tuning the contact material composition and geometry, engineers can influence the point at which current chopping occurs. This level of control helps minimize potential voltage spikes that could otherwise damage connected equipment.

While current chopping is generally beneficial, it's important to note that excessive chopping can lead to overvoltages in some systems. The ERD-12/1250-25's design strikes a balance, providing fast interruption while maintaining system stability.

Dielectric Recovery: Preparing for the Next Cycle

After the arc has been extinguished, the ERD-12/1250-25 vacuum interrupter must quickly regain its ability to withstand high voltages. This process, known as dielectric recovery, is crucial for preventing arc re-ignition and ensuring reliable operation.

In the vacuum environment of the ERD-12/1250-25, dielectric recovery occurs remarkably fast. Without air molecules to ionize, the space between contacts quickly regains its insulating properties. This rapid recovery allows the interrupter to withstand the transient recovery voltage (TRV) that occurs immediately after current interruption.

The speed of dielectric recovery in the ERD-12/1250-25 is one of its key advantages over other types of circuit breakers. It allows for faster reclosing times and contributes to the overall reliability of power systems using this interrupter.

Applications and Advantages of the ERD-12/1250-25 Vacuum Interrupter

Power Distribution Networks: Ensuring Reliable Energy Flow

The ERD-12/1250-25 vacuum interrupter finds extensive use in power distribution networks, where its rapid response and reliable operation are invaluable. In these networks, the interrupter serves as a critical component in switchgear and circuit breakers, protecting transformers, feeders, and other essential equipment from fault currents and overloads.

The interrupter's ability to handle high voltages and currents makes it suitable for both indoor and outdoor substations. Its compact size allows for the design of more space-efficient switchgear, a significant advantage in urban environments where space is at a premium.

Moreover, the ERD-12/1250-25's long operational life and minimal maintenance requirements make it an economical choice for utilities and industrial facilities. Its reliability contributes to reduced downtime and improved overall system efficiency.

Industrial Applications: Powering Manufacturing and Processing

In industrial settings, the ERD-12/1250-25 vacuum interrupter plays a crucial role in protecting large motors, capacitor banks, and other high-power equipment. Its fast interruption capabilities are particularly valuable in environments where rapid fault clearance is essential to prevent equipment damage and ensure worker safety.

The interrupter's resistance to harsh environments, including dust, humidity, and extreme temperatures, makes it well-suited for use in various industrial sectors. From steel mills and paper plants to chemical processing facilities, the ERD-12/1250-25 provides reliable protection in demanding conditions.

Additionally, the vacuum interrupter's low environmental impact, due to the absence of oil or SF6 gas, aligns well with modern industrial sustainability goals. This makes the ERD-12/1250-25 an attractive option for companies looking to reduce their environmental footprint while maintaining high operational standards.

Renewable Energy Integration: Supporting Green Power

As renewable energy sources become increasingly prevalent, the role of devices like the ERD-12/1250-25 vacuum interrupter in grid integration becomes more critical. The interrupter's fast operation and reliability make it well-suited for protecting and controlling renewable energy systems, such as wind farms and solar installations.

In wind power applications, the ERD-12/1250-25 can be used in turbine switchgear, providing essential protection against faults and facilitating grid connection. Its ability to handle frequent switching operations is particularly valuable in this context, where changing wind conditions may necessitate frequent connection and disconnection from the grid.

For solar power systems, the vacuum interrupter's compact size and high reliability make it an excellent choice for integration into inverter systems and connection points. Its fast response time helps manage the variable output inherent to solar generation, contributing to grid stability and power quality.

Conclusion

The ERD-12/1250-25 vacuum interrupter represents a pinnacle of electrical engineering, offering a sophisticated solution for current interruption in high-voltage systems. Its unique design, leveraging the properties of a vacuum environment, enables rapid arc extinction and swift dielectric recovery. These capabilities, combined with its compact size, long operational life, and minimal maintenance requirements, make it an invaluable component in power distribution networks, industrial applications, and renewable energy systems. As electrical grids evolve to meet the challenges of the 21st century, the ERD-12/1250-25 vacuum interrupter stands ready to play a crucial role in ensuring reliable, efficient, and safe power distribution.
