Which Circuit Breakers Are Compatible with the DPC-4 Series Chassis?

The DPC-4 series chassis is a versatile and robust platform designed to accommodate a range of circuit breakers, offering flexibility and reliability in electrical distribution systems. Compatible circuit breakers for the DPC-4 series chassis typically include medium-voltage vacuum circuit breakers rated between 12kV to 40.5kV, with current ratings ranging from 630A to 3150A. These breakers are specifically engineered to fit seamlessly into the DPC-4 chassis, ensuring optimal performance and safety. The compatibility extends to various brands and models, provided they meet the dimensional and electrical specifications required by the DPC-4 series chassis design.

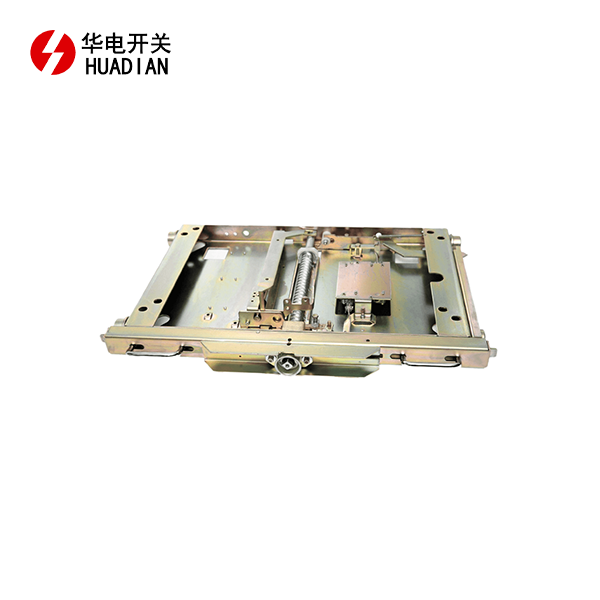

Understanding the DPC-4 Series Chassis

Key Features of the DPC-4 Series Chassis

The DPC-4 series chassis is a cutting-edge solution in electrical distribution systems, boasting several noteworthy features. Its robust construction ensures durability and longevity, even in demanding industrial environments. The chassis incorporates advanced safety mechanisms, including interlocks and fail-safe systems, to prevent accidental operation and enhance user safety. Moreover, the DPC-4 series chassis is designed with modularity in mind, allowing for easy installation, maintenance, and future upgrades.

Applications of the DPC-4 Series Chassis

The versatility of the DPC-4 series chassis makes it suitable for a wide range of applications. It finds extensive use in power generation plants, where reliable circuit protection is paramount. Substations and industrial facilities also benefit from the DPC-4 chassis's robust design and compatibility with various circuit breakers. Additionally, the chassis is well-suited for renewable energy installations, such as wind farms and solar power plants, where it helps manage the unique challenges of fluctuating power generation.

Advantages of Using the DPC-4 Series Chassis

Employing the DPC-4 series chassis offers numerous advantages to electrical system designers and operators. Its compatibility with multiple circuit breaker types provides flexibility in system design and allows for easy upgrades as needs evolve. The chassis's compact footprint maximizes space utilization in electrical rooms, while its standardized design simplifies inventory management and reduces spare part requirements. Furthermore, the DPC-4 series chassis contributes to improved system reliability through its advanced safety features and robust construction.

Compatible Circuit Breakers for the DPC-4 Series Chassis

Vacuum Circuit Breakers

Vacuum circuit breakers are among the most common types compatible with the DPC-4 series chassis. These breakers utilize vacuum interrupters to extinguish arcs, offering superior performance in medium-voltage applications. They are known for their high reliability, minimal maintenance requirements, and long operational life. Vacuum circuit breakers compatible with the DPC-4 chassis typically range from 12kV to 40.5kV, with current ratings from 630A to 3150A, catering to a wide array of electrical distribution needs.

SF6 Circuit Breakers

Sulfur hexafluoride (SF6) circuit breakers are another category that can be accommodated by the DPC-4 series chassis. These breakers use SF6 gas as an arc-quenching medium, providing excellent insulation and arc-extinguishing properties. SF6 breakers are particularly well-suited for high-voltage applications and environments where space is at a premium. When designed to fit the DPC-4 chassis, SF6 breakers offer a compact solution for medium-voltage switchgear, typically in the range of 12kV to 40.5kV.

Hybrid Circuit Breakers

Hybrid circuit breakers, which combine features of different breaker technologies, can also be compatible with the DPC-4 series chassis. These innovative breakers often integrate vacuum interrupters with SF6 insulation, leveraging the strengths of both technologies. Hybrid breakers designed for the DPC-4 chassis offer enhanced performance, reduced maintenance requirements, and improved environmental credentials compared to traditional breaker types. They are particularly valuable in applications where high performance and minimal environmental impact are priorities.

Ensuring Compatibility with the DPC-4 Series Chassis

Dimensional Considerations

When selecting circuit breakers for use with the DPC-4 series chassis, dimensional compatibility is crucial. The chassis is designed to accommodate breakers with specific physical dimensions, including height, width, and depth. These dimensions must be carefully matched to ensure proper fit and function within the chassis. Additionally, the mounting points and connection interfaces of the breaker must align precisely with those of the DPC-4 chassis to guarantee secure installation and reliable operation.

Electrical Specifications

Electrical compatibility is equally important when choosing circuit breakers for the DPC-4 series chassis. The voltage and current ratings of the breaker must align with the chassis specifications and the requirements of the electrical system. Factors such as interrupting capacity, short-time withstand current, and making capacity should be carefully evaluated to ensure the breaker can adequately protect the system. Moreover, the control and auxiliary circuits of the breaker must be compatible with the chassis's control systems for seamless integration and operation.

Safety and Certification Requirements

To ensure safe and compliant operation, circuit breakers used with the DPC-4 series chassis must meet relevant safety standards and certifications. This includes adherence to international standards such as IEC 62271-100 for high-voltage switchgear and controlgear. Breakers should also comply with regional safety regulations and industry-specific requirements. Certification from recognized testing laboratories provides assurance of the breaker's performance and safety when used in conjunction with the DPC-4 chassis.

Conclusion

The DPC-4 series chassis offers remarkable versatility in accommodating various circuit breaker types, including vacuum, SF6, and hybrid breakers. This flexibility, combined with the chassis's robust design and advanced features, makes it an excellent choice for a wide range of electrical distribution applications. When selecting compatible circuit breakers, it's essential to consider dimensional fit, electrical specifications, and safety certifications. By carefully matching breakers to the DPC-4 chassis, operators can ensure optimal system performance, reliability, and safety in their electrical distribution networks.
