Pre-Installation Preparations
Site Assessment
Before beginning the installation process, a thorough site assessment is crucial to ensure optimal performance of the medium voltage vacuum circuit breaker. This includes evaluating key environmental parameters such as ambient temperature, humidity levels, and installation altitude, all of which may influence the breaker's insulation and operational characteristics. It's essential to confirm that the site is level, structurally sound, and free from vibration or electromagnetic interference. A clean, dry, and dust-free environment will help prevent contamination and mechanical or electrical faults post-installation.
Equipment Inspection
Carefully inspect the medium voltage vacuum circuit breaker and its associated components as soon as they are delivered to the site. Look for signs of physical damage like dents, cracks, or loose connections, which may have occurred during shipping or handling. Cross-check the shipment with the packing list to verify that all essential parts - such as the breaker module, control wiring, mounting hardware, and accessories - are included and undamaged. Any irregularities or missing components should be documented and reported immediately for resolution before proceeding.
Tools and Safety Gear
Gathering the correct tools and safety gear before beginning installation is critical for both efficiency and safety. Required tools typically include insulated torque wrenches, multimeters, crimping tools, cable cutters, and alignment gauges. Safety equipment should meet applicable electrical standards and includes PPE such as arc-rated clothing, safety glasses, rubber-insulated gloves, hard hats, and face shields. Proper grounding tools and lockout/tagout devices should also be on hand. Ensuring all tools are in working condition helps prevent delays and reduces the risk of injury during the installation process.
Installation Process
Mounting and Positioning

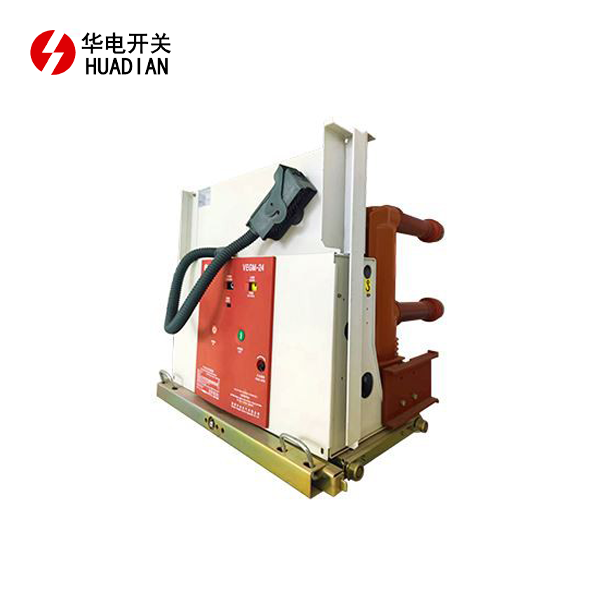

Begin by mounting the medium voltage vacuum circuit breaker in its designated switchgear compartment. Proper alignment is critical for correct operation and safety, as misalignment can lead to mechanical binding or electrical faults. Use the manufacturer's guidelines to ensure the breaker is level and securely fastened using the appropriate mounting hardware. Pay special attention to the racking mechanism, ensuring it engages smoothly with the switchgear structure and allows for seamless insertion and withdrawal during maintenance or operational switching.
Electrical Connections
Carefully make all electrical connections according to the circuit diagram provided by the manufacturer. This includes primary power connections, control wiring, and any auxiliary circuits such as trip and close coils. Use the specified cable sizes and types to maintain the integrity and performance of the electrical system. Proper torque should be applied to all bolted connections to prevent loose terminations that could lead to overheating, arcing, or equipment failure. Confirm all electrical interfaces are properly insulated and comply with safety standards.
Mechanical Adjustments
After securing the electrical connections, perform any necessary mechanical adjustments to ensure proper breaker function. This may include setting the contact gap within specified tolerances, adjusting the operating mechanism to ensure smooth movement, and verifying the proper operation of mechanical interlocks and safety features. These adjustments are crucial for ensuring the medium voltage vacuum circuit breaker operates correctly and safely under various electrical and environmental conditions. Conduct a series of manual and automatic test operations to confirm mechanical readiness before energizing the system.
Post-Installation Procedures
Testing and Commissioning
Once the installation is complete, conduct comprehensive testing and commissioning procedures to ensure the medium voltage vacuum circuit breaker operates correctly and safely. This typically involves insulation resistance tests to assess the condition of the dielectric system, contact resistance measurements to verify good electrical continuity, and functional tests of the breaker mechanism. Verify that all protection relays, control circuits, and trip/close operations function as intended. Document all test results in detail for quality assurance, regulatory compliance, and future maintenance reference.
Safety Checks
Perform a final safety inspection before energizing the medium voltage vacuum circuit breaker to ensure the system is secure and hazard-free. This includes verifying the correct operation of all mechanical and electrical safety interlocks, confirming that the breaker is properly grounded, and ensuring that all protective covers and access panels are installed and secured. Carefully inspect the installation for any exposed live parts, loose hardware, or potential pinch points that may pose safety risks to operating or maintenance personnel.
Documentation and Training
Complete all required documentation following the installation of the medium voltage vacuum circuit breaker. This includes installation checklists, electrical schematics, as-built drawings, test reports, and records of any modifications. Ensure these documents are stored for ongoing maintenance and compliance audits. Additionally, provide comprehensive training to relevant personnel on breaker operation, safety procedures, and basic troubleshooting. This training should be hands-on where possible and supplemented with manuals and visual aids to enhance understanding and ensure safe, reliable operation over the breaker's service life.
Conclusion
Installing a medium voltage vacuum circuit breaker is a complex process that requires careful planning, precise execution, and rigorous testing. By following this comprehensive guide, you can ensure a safe and effective installation that maximizes the performance and reliability of your electrical distribution system. Remember that proper installation is just the first step in maintaining the longevity of your equipment. Regular maintenance and inspections are essential to keep your medium voltage vacuum circuit breaker operating at peak efficiency for years to come.
