Types of Insulation Barriers Used in Electrical Substations

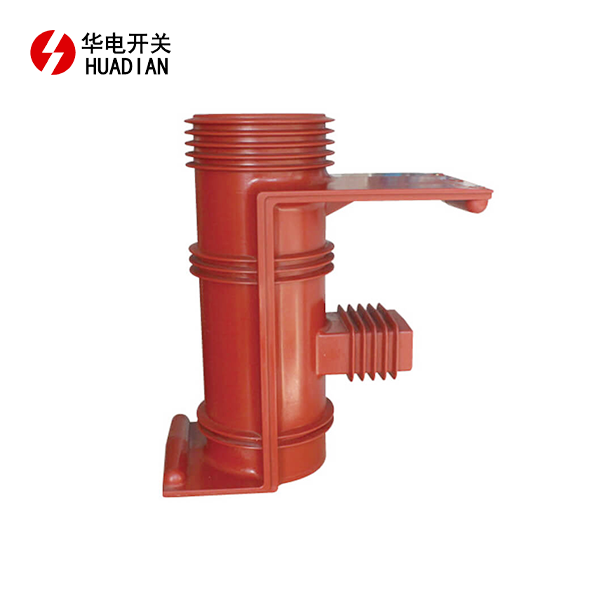

Solid Insulation Barriers
Solid insulation barriers are robust and durable components used in electrical substations to provide reliable insulation between conductive parts. These barriers are typically made from materials such as epoxy resin, fiberglass, or high-density polyethylene. Solid insulation barriers offer excellent dielectric strength and mechanical stability, making them suitable for high-voltage applications. Their non-porous nature prevents moisture ingress, ensuring long-term performance even in harsh environmental conditions.
Gas-Insulated Barriers
Gas-insulated barriers utilize specialized gases, such as sulfur hexafluoride (SF6), to provide insulation in compact substation designs. These barriers offer superior insulation properties compared to air, allowing for reduced clearances between energized components. Gas-insulated barriers are particularly advantageous in urban areas where space constraints are a concern. The inert nature of the insulating gas also helps suppress arcing and provides excellent heat dissipation, enhancing the overall reliability of the substation.
Hybrid Insulation Barriers
Hybrid insulation barriers combine the benefits of solid and gas insulation technologies to optimize substation performance. These barriers typically consist of solid insulating materials encapsulated within a gas-filled enclosure. The synergy between the two insulation methods results in enhanced dielectric strength, improved thermal management, and reduced maintenance requirements. Hybrid insulation barriers are increasingly popular in modern substation designs, offering a balance between compact footprint and exceptional insulation capabilities.
Key Functions of Insulation Barriers in Electrical Substations
Arc Flash Prevention
One of the primary functions of insulation barriers in electrical substations is to prevent arc flashes. Arc flashes occur when electrical current jumps through the air between conductors or from a conductor to ground, resulting in a dangerous release of energy. Insulation barriers create physical separation between energized components, increasing the distance that an arc must travel to form. This increased distance significantly reduces the likelihood of arc flash incidents, enhancing safety for personnel and protecting equipment from potential damage.
Voltage Stress Management
Insulation barriers play a crucial role in managing voltage stress within electrical substations. High-voltage equipment generates intense electric fields that can lead to insulation breakdown if not properly managed. By strategically placing insulation barriers, substation designers can control the distribution of electric field stress across various components. This distribution helps prevent localized areas of high stress that could lead to partial discharges or complete insulation failure. Effective voltage stress management through insulation barriers contributes to the longevity and reliability of substation equipment.
Environmental Protection
Insulation barriers in electrical substations also serve an important environmental protection function. They help contain potential oil leaks from transformers and other oil-filled equipment, preventing contamination of surrounding soil and water resources. Additionally, insulation barriers can act as sound barriers, reducing noise pollution from substation operations in nearby residential or commercial areas. By incorporating environmentally friendly materials and designs, modern insulation barriers contribute to the overall sustainability and community acceptance of electrical substations.
Advancements in Insulation Barrier Technology
Smart Insulation Barriers
The emergence of smart insulation barriers represents a significant advancement in substation technology. These innovative barriers incorporate sensors and monitoring systems to provide real-time data on insulation performance, temperature, and environmental conditions. By continuously assessing the health of insulation barriers, utilities can implement predictive maintenance strategies, reducing the risk of unexpected failures and optimizing maintenance schedules. Smart insulation barriers contribute to the overall digitalization of substations, enhancing operational efficiency and reliability.
Nanocomposite Insulation Materials
Nanocomposite materials are revolutionizing the field of insulation barriers in electrical substations. These advanced materials incorporate nanoparticles into traditional insulating polymers, resulting in enhanced dielectric properties, improved thermal conductivity, and increased mechanical strength. Nanocomposite insulation barriers offer superior resistance to partial discharges and electrical treeing, extending the lifespan of substation equipment. The use of nanocomposite materials also allows for the development of more compact and lightweight insulation barriers, facilitating easier installation and maintenance in substations.
Biodegradable Insulation Solutions
As environmental concerns continue to grow, the development of biodegradable insulation solutions for electrical substations has gained momentum. These eco-friendly alternatives aim to replace traditional petroleum-based insulation materials with renewable and biodegradable options. Researchers are exploring natural materials such as vegetable oils, cellulose, and biopolymers as potential candidates for insulation barriers. Biodegradable insulation solutions offer the potential for reduced environmental impact throughout the lifecycle of substation equipment, aligning with sustainability goals and regulatory requirements.
Conclusion
Insulation barriers are indispensable components in electrical substations, playing a vital role in ensuring safety, reliability, and efficiency. From arc flash prevention to voltage stress management and environmental protection, these barriers contribute significantly to the overall performance of power distribution systems. As technology continues to advance, innovations such as smart insulation barriers, nanocomposite materials, and biodegradable solutions are shaping the future of substation design. By embracing these advancements and recognizing the critical importance of insulation barriers, utilities can enhance the resilience and sustainability of their electrical infrastructure for years to come.
