The Importance of Insulation Barriers in GIS
Enhanced Safety and Reliability
Insulation barriers in gas-insulated switchgear significantly enhance the safety and reliability of electrical systems. By creating a physical barrier between live components and the grounded enclosure, these barriers prevent electrical arcing and reduce the risk of equipment failure. The strategic placement of insulation barriers helps maintain proper clearances and creepage distances, ensuring that the GIS can withstand high voltages and operate safely under various environmental conditions.
Improved Dielectric Strength
One of the primary functions of insulation barriers is to improve the dielectric strength of the gas-insulated switchgear. The barriers work in conjunction with the insulating gas, typically sulfur hexafluoride (SF6), to provide superior insulation properties. By carefully designing the shape and positioning of these barriers, engineers can optimize the electric field distribution within the GIS, reducing stress on critical components and minimizing the likelihood of partial discharges or electrical breakdowns.
Compact Design and Space Efficiency
The use of insulation barriers enables the design of more compact gas-insulated switchgear. By effectively managing electric fields and insulation requirements, GIS manufacturers can reduce the overall size of the equipment without compromising performance or safety. This compact design is particularly advantageous in urban substations or other applications where space is at a premium, allowing for more efficient use of available real estate and potentially reducing installation costs.
Types of Insulation Barriers Used in GIS

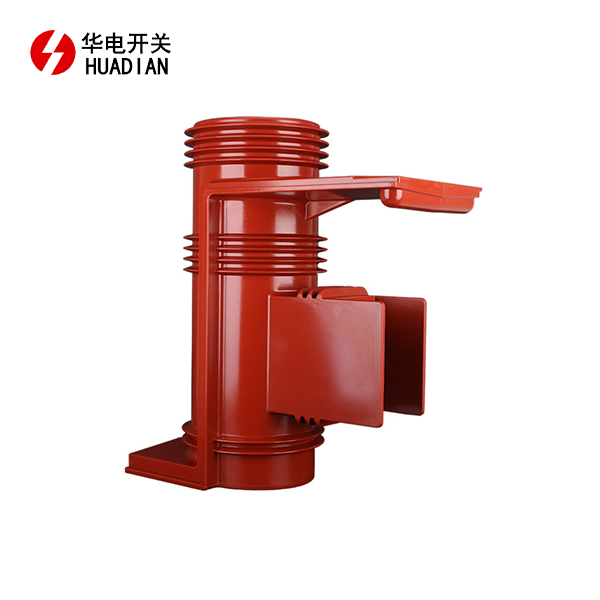

Epoxy Resin Barriers
Epoxy resin is a popular material for insulation barriers in gas-insulated switchgear due to its excellent electrical and mechanical properties. These barriers are typically cast or molded into specific shapes to fit the GIS design requirements. Epoxy resin barriers offer high dielectric strength, good thermal stability, and resistance to partial discharges. They can be reinforced with glass fibers or other materials to enhance their mechanical strength and durability, making them suitable for long-term use in high-voltage applications.
Silicone Rubber Barriers
Silicone rubber is another common material used for insulation barriers in GIS. This elastomeric material offers excellent flexibility and thermal stability, making it ideal for applications where thermal expansion and contraction need to be accommodated. Silicone rubber barriers are often used in areas of the GIS that require a degree of flexibility or where complex geometries are needed. They provide good electrical insulation properties and can be easily molded or extruded into various shapes to meet specific design requirements.
Composite Barriers
Composite insulation barriers combine multiple materials to achieve optimal performance characteristics. For example, a composite barrier might consist of an epoxy resin core with a silicone rubber outer layer. This combination leverages the high dielectric strength of epoxy resin with the flexibility and environmental resistance of silicone rubber. Composite barriers can be tailored to meet specific electrical, mechanical, and thermal requirements, offering a versatile solution for challenging GIS applications.
Design Considerations for Insulation Barriers
Electric Field Management
Effective electric field management is a critical aspect of insulation barrier design in gas-insulated switchgear. Engineers must carefully analyze the electric field distribution within the GIS enclosure and design barriers that minimize areas of high field stress. This often involves using computational tools like finite element analysis to optimize the shape and placement of barriers. By effectively managing electric fields, designers can reduce the risk of partial discharges and improve the overall insulation performance of the GIS.
Material Selection and Compatibility
Selecting the appropriate materials for insulation barriers is crucial for ensuring long-term performance and reliability of gas-insulated switchgear. The chosen materials must be compatible with the insulating gas (typically SF6) and withstand the environmental conditions within the GIS enclosure. Factors such as temperature variations, humidity, and potential chemical interactions must be considered. Additionally, the materials should maintain their insulating properties over the expected lifetime of the equipment, which can span several decades.
Thermal Management and Stress Relief
Insulation barriers in GIS must be designed to accommodate thermal expansion and contraction due to temperature fluctuations during operation. Proper thermal management ensures that mechanical stresses on the barriers are minimized, preventing cracks or deformations that could compromise their insulating properties. Designers may incorporate features such as stress relief grooves or flexible joints to allow for thermal movement without compromising the integrity of the insulation system.
Conclusion
Insulation barriers are indispensable components in gas-insulated switchgear, playing a vital role in ensuring the safety, reliability, and performance of high-voltage electrical systems. By carefully considering material selection, electric field management, and design optimization, engineers can create effective insulation barriers that contribute to the compact size, longevity, and efficiency of GIS installations. As power transmission and distribution networks continue to evolve, the ongoing development of advanced insulation barrier technologies will remain crucial in meeting the growing demands for reliable and sustainable electrical infrastructure worldwide.
