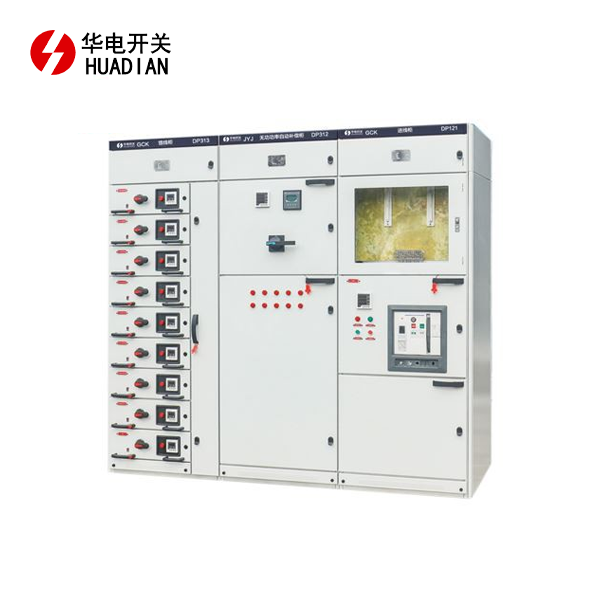

What are the Types of Low Voltage Switchgear?

Low voltage switchgear encompasses a variety of electrical distribution equipment designed to control, protect, and isolate electrical circuits operating at voltages up to 1000V AC or 1500V DC. The main types of low voltage switchgear include air circuit breakers (ACBs), molded case circuit breakers (MCCBs), miniature circuit breakers (MCBs), contactors, and switch disconnectors. Each type serves specific functions within electrical systems, offering unique features such as current ratings, breaking capacities, and installation methods. Understanding these different types is crucial for selecting the appropriate switchgear for various applications in industrial, commercial, and residential settings.

Air Circuit Breakers (ACBs)

Operating Principle of ACBs

Air circuit breakers utilize air at atmospheric pressure as the insulating medium to extinguish the arc created during circuit interruption. As a common component of low voltage switchgear, ACBs play a crucial role in electrical protection systems. When a fault occurs, the ACB's contacts separate, creating an arc. The arc is then stretched, cooled, and extinguished by the surrounding air, effectively breaking the circuit. This process happens rapidly, typically within milliseconds, ensuring quick and reliable protection against overcurrents and short circuits.

Applications of ACBs

ACBs find extensive use in high-current, low-voltage applications, particularly in industrial and commercial settings. As an essential part of low voltage switchgear systems, they are commonly employed in main distribution panels, generator output circuits, and as incoming supply breakers in large buildings. Their robust construction and high interrupting capacities make them ideal for protecting critical equipment and systems where reliability is paramount.

Advantages of ACBs

The use of air as an insulating medium offers several advantages. ACBs are environmentally friendly, as they don't require harmful gases or oils. As components of low voltage switchgear systems, they provide excellent visibility of contact position, facilitating easy maintenance and inspection. ACBs also offer superior current limiting capabilities and can be equipped with various protective functions, enhancing their versatility in different applications.

Molded Case Circuit Breakers (MCCBs)

Design Features of MCCBs

Molded case circuit breakers are enclosed in a molded insulating case, typically made of thermosetting plastic. As integral parts of low voltage switchgear systems, this design provides excellent insulation and protection against environmental factors. MCCBs incorporate both thermal and magnetic trip mechanisms, allowing them to respond to both overload and short-circuit conditions. The thermal element responds to sustained overloads, while the magnetic element provides instantaneous tripping for short circuits.

Current Ratings and Breaking Capacities

MCCBs are available in a wide range of current ratings, typically from 16A to 3000A. As key components of low voltage switchgear, their breaking capacities can reach up to 150kA, making them suitable for various applications. The selection of an MCCB depends on the specific requirements of the circuit, including the expected fault current levels and the nature of the load being protected. Proper sizing and selection are crucial for ensuring optimal protection and performance.

Adjustable Trip Settings

Many modern MCCBs, as essential elements of low voltage switchgear systems, offer adjustable trip settings, allowing for customization of the protection characteristics. These adjustable settings may include long-time pickup and delay, short-time pickup and delay, and instantaneous pickup. This flexibility enables fine-tuning of the breaker's response to match the specific needs of the protected circuit, enhancing overall system coordination and selectivity.

Miniature Circuit Breakers (MCBs)

Compact Design and Installation

Miniature circuit breakers are characterized by their compact size and modular design. As common components of low voltage switchgear, they are typically DIN rail mountable, allowing for easy installation and replacement in distribution boards. MCBs are available in various pole configurations, including single-pole, double-pole, triple-pole, and four-pole versions, catering to different circuit requirements. Their standardized dimensions facilitate quick installation and interchangeability between different manufacturers' products.

Tripping Characteristics

MCBs employ a bimetallic strip for thermal tripping and an electromagnetic solenoid for magnetic tripping. As part of low voltage switchgear assemblies, the thermal mechanism responds to overloads by bending the bimetallic strip, which then triggers the tripping mechanism. For short circuits, the electromagnetic solenoid provides rapid response, instantly opening the contacts. MCBs are available with different tripping characteristics, such as B, C, and D curves, to suit various load types and starting currents.

Residential and Light Commercial Applications

MCBs are widely used in residential and light commercial applications due to their cost-effectiveness and ease of use. As integral components of low voltage switchgear, they provide protection for lighting circuits, socket outlets, and small appliances. In these settings, MCBs offer a balance between safety and convenience, allowing for quick restoration of power after a trip without the need for fuse replacement. Their standardized design also simplifies inventory management for electricians and maintenance personnel.

Contactors and Switch Disconnectors

Contactor Operation and Control

Contactors are electromechanical switching devices designed for frequent operation under load. As key components within low voltage switchgear systems, they consist of main power contacts and an electromagnet that controls their operation. When the coil is energized, it pulls the moving contact assembly, closing the main contacts and allowing current to flow. Contactors are often used in conjunction with overload relays to provide motor starting and protection. They can be controlled remotely, making them ideal for automation systems and remote operation scenarios.

Switch Disconnector Functionality

Switch disconnectors, also known as isolators, are designed to provide a visible and reliable means of isolating electrical circuits. As essential parts of low voltage switchgear, they are not intended to interrupt fault currents like circuit breakers. Instead, their primary function is to ensure the safe isolation of circuits for maintenance or emergency shutdown purposes. Switch disconnectors often feature a lockable handle, allowing for compliance with lockout/tagout safety procedures during maintenance activities.

Integration in Switchgear Assemblies

Both contactors and switch disconnectors play crucial roles in low voltage switchgear assemblies. Contactors are often used as the primary switching device in motor control centers and lighting control panels. Switch disconnectors, on the other hand, are typically installed upstream of other protective devices to provide a means of isolating entire sections of an electrical installation. The integration of these devices in switchgear assemblies enhances overall system flexibility, safety, and maintainability.

Conclusion

Low voltage switchgear encompasses a diverse range of devices, each tailored to specific applications and protection requirements. From the robust air circuit breakers suited for high-current industrial applications to the compact miniature circuit breakers found in residential settings, the variety of low voltage switchgear types ensures that electrical systems can be effectively protected, controlled, and isolated. As electrical systems continue to evolve, driven by factors such as renewable energy integration and smart grid technologies, the importance of selecting and implementing the appropriate low voltage switchgear becomes increasingly critical. By understanding the characteristics and applications of different switchgear types, electrical engineers and facility managers can make informed decisions to enhance system reliability, safety, and efficiency.
