Medium vs High Voltage Vacuum Circuit Breakers: What’s the Difference?

2025-05-23 08:44:25

Medium and high voltage vacuum circuit breakers are essential components in electrical power systems, but they serve different purposes and operate at distinct voltage levels. The primary difference lies in their voltage ratings: medium voltage vacuum circuit breakers typically handle voltages between 1 kV and 72.5 kV, while high voltage vacuum circuit breakers are designed for voltages above 72.5 kV, often up to 145 kV or higher. This distinction affects their construction, insulation requirements, and applications. Medium voltage breakers are commonly used in industrial and commercial settings, while high voltage breakers are crucial for power transmission and distribution networks. Understanding these differences is vital for selecting the appropriate circuit breaker for specific electrical system needs.

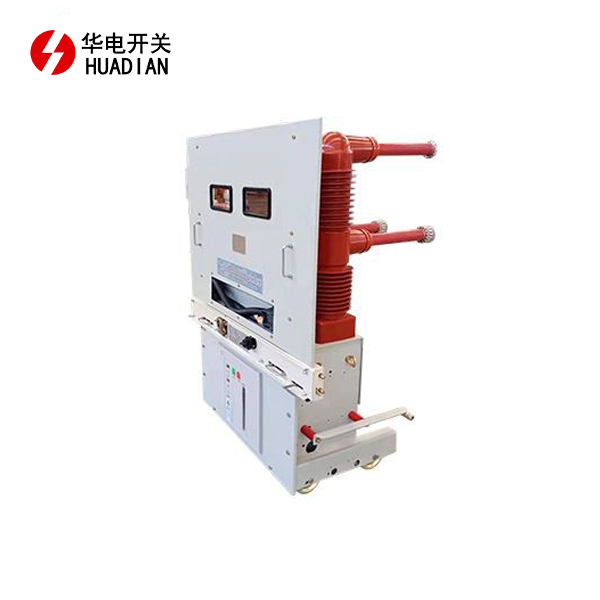

blog-1-1

Understanding Vacuum Circuit Breakers

The Fundamentals of Vacuum Circuit Breakers

Vacuum circuit breakers are advanced electrical devices designed to interrupt and protect electrical circuits. They operate by creating a vacuum between the contacts, which extinguishes the arc formed during circuit interruption. This technology offers numerous advantages, including rapid arc extinction, minimal maintenance requirements, and compact design.

Components of a Vacuum Circuit Breaker

A typical vacuum circuit breaker consists of several key components:

- Vacuum interrupter: The heart of the breaker, containing fixed and moving contacts in a vacuum chamber

- Operating mechanism: Responsible for opening and closing the contacts

- Insulating envelope: Provides electrical insulation and mechanical protection

- Terminal connections: For connecting the breaker to the electrical system

- Control and monitoring systems: Ensure proper operation and safety

Operating Principle of Vacuum Circuit Breakers

When a fault occurs, the vacuum circuit breaker's contacts separate, creating an arc in the vacuum. The lack of ionizable medium in the vacuum chamber causes the arc to extinguish rapidly at the first current zero. This swift interruption minimizes damage to the system and enhances overall safety.

Medium Voltage Vacuum Circuit Breakers

Characteristics of Medium Voltage Vacuum Circuit Breakers

Medium voltage vacuum circuit breakers, typically rated between 1 kV and 72.5 kV, are widely used in industrial and commercial applications. These breakers offer excellent reliability, compact size, and minimal maintenance requirements. They are particularly effective in handling frequent switching operations and interrupting fault currents efficiently.

Applications of Medium Voltage Vacuum Circuit Breakers

Medium voltage vacuum circuit breakers find extensive use in various sectors:

- Industrial facilities: Protecting motors, transformers, and distribution systems

- Commercial buildings: Safeguarding electrical systems in large complexes

- Utility substations: Managing power distribution at medium voltage levels

- Renewable energy plants: Protecting solar and wind power generation systems

Advantages of Medium Voltage Vacuum Circuit Breakers

These breakers offer several benefits:

- Compact design: Ideal for installations with space constraints

- Long electrical life: Capable of numerous operations without maintenance

- Environmental friendliness: No oil or SF6 gas, reducing environmental impact

- Fast operation: Quick arc extinction, minimizing system disturbances

- Low maintenance: Sealed vacuum interrupters require minimal upkeep

High Voltage Vacuum Circuit Breakers

Features of High Voltage Vacuum Circuit Breakers

High voltage vacuum circuit breakers, designed for voltages above 72.5 kV, represent the cutting edge of vacuum interruption technology. These breakers incorporate advanced insulation techniques and multiple vacuum interrupters in series to handle higher voltages. They offer exceptional performance in terms of interrupting capacity and operational reliability.

Applications of High Voltage Vacuum Circuit Breakers

High voltage vacuum circuit breakers are crucial in:

- Power transmission networks: Protecting high voltage transmission lines

- Large-scale power generation facilities: Safeguarding generators and transformers

- Grid interconnections: Managing power flow between different grid sections

- High voltage substations: Controlling and protecting substation equipment

Challenges and Innovations in High Voltage Vacuum Circuit Breakers

Developing high voltage vacuum circuit breakers presents unique challenges:

- Voltage withstand capability: Ensuring insulation can handle high voltages

- Interrupting capacity: Managing large fault currents at high voltages

- Thermal management: Dissipating heat generated during high-power interruptions

- Size and weight: Balancing performance with practical installation requirements

Unlike a medium voltage vacuum circuit breaker, which operates under less demanding conditions, innovations in materials science and design are continuously addressing these challenges, expanding the application range of vacuum technology in high voltage systems.

Comparing Medium and High Voltage Vacuum Circuit Breakers

Technical Differences

The primary distinctions between medium and high voltage vacuum circuit breakers include:

- Voltage rating: Medium voltage up to 72.5 kV, high voltage above 72.5 kV

- Insulation requirements: More stringent for high voltage breakers

- Number of interrupting units: High voltage breakers often use multiple units in series

- Size and complexity: High voltage breakers are generally larger and more complex

- Cost: High voltage breakers are typically more expensive due to advanced technology

Performance Considerations

When comparing performance:

- Interrupting capacity: High voltage breakers handle larger fault currents

- Operating speed: Both types, including the medium voltage vacuum circuit breaker, offer fast operation, crucial for system protection

- Reliability: Both are highly reliable, with minimal maintenance requirements

- Environmental impact: Both types are environmentally friendly compared to oil or SF6 breakers

Selection Criteria for Different Applications

Choosing between medium and high voltage vacuum circuit breakers depends on:

- System voltage: The primary determining factor

- Fault current levels: Ensures the breaker can handle potential fault currents

- Switching frequency: Medium voltage breakers often handle more frequent operations

- Space constraints: Medium voltage breakers are more compact

- Budget considerations: High voltage breakers generally involve higher investment

- Specific application requirements: Power generation, transmission, or distribution needs

Conclusion

Medium and high voltage vacuum circuit breakers play pivotal roles in electrical power systems, each serving specific voltage ranges and applications. While medium voltage vacuum circuit breakers excel in industrial and commercial settings, offering compact solutions for voltages up to 72.5 kV, high voltage breakers push the boundaries of vacuum technology to protect transmission networks and large-scale power facilities. Both types share the advantages of environmental friendliness, reliability, and low maintenance. As technology advances, the line between medium and high voltage applications continues to blur, with vacuum circuit breakers increasingly becoming the preferred choice across a wide voltage spectrum, promising safer, more efficient, and sustainable power distribution solutions.

Contact Us

For more information about our range of medium voltage vacuum circuit breakers and how they can benefit your electrical systems, please contact us at austinyang@hdswitchgear.com/rexwang@hdswitchgear.com/pannie@hdswitchgear.com. Our team of experts is ready to assist you in selecting the ideal circuit breaker for your specific needs.

References

Garzon, R. D. (2002). High Voltage Circuit Breakers: Design and Applications. CRC Press.

Slade, P. G. (2007). The Vacuum Interrupter: Theory, Design, and Application. CRC Press.

Smeets, R. P. P., Bolin, L., & Ojha, V. N. (2014). Switching in Electrical Transmission and Distribution Systems. John Wiley & Sons.

Flurscheim, C. H. (1982). Power Circuit Breaker Theory and Design. IET.

Naidu, M. S., & Kamaraju, V. (2013). High Voltage Engineering. Tata McGraw-Hill Education.

Kapoor, A. K., & Arora, R. (2018). Vacuum Circuit Breakers: Fundamentals and Applications. Springer.
