Difference Between Oil Circuit Breaker and Vacuum Circuit Breaker

The main difference between oil circuit breakers and vacuum circuit breakers lies in their arc extinguishing mechanisms. Oil circuit breakers use oil as an insulating and arc-quenching medium, while vacuum circuit breakers operate in a high-vacuum environment. Vacuum circuit breakers are more compact, require less maintenance, and offer faster arc extinction. They also have a longer lifespan and are more environmentally friendly compared to oil circuit breakers. However, oil circuit breakers can handle higher voltages and are often more cost-effective for certain applications. The choice between these two types depends on specific operational requirements, voltage levels, and environmental considerations.

Understanding Circuit Breakers: Oil vs. Vacuum Technology

Fundamental Principles of Circuit Breakers

Circuit breakers are crucial components in electrical systems, designed to protect circuits from damage caused by overcurrent or short circuits. They automatically interrupt the flow of electricity when a fault is detected, preventing potential fires, equipment damage, or electrical hazards. The fundamental principle behind all circuit breakers is the ability to quickly separate contacts and extinguish the resulting arc.

Oil Circuit Breaker Technology

Oil circuit breakers have been in use for many decades. They utilize oil as both an insulating medium and an arc-quenching substance. When a fault occurs, the contacts separate, creating an arc. This arc is then surrounded by oil, which vaporizes and creates a high-pressure bubble. The oil's cooling effect and the pressure from the bubble help extinguish the arc. While effective, this method has drawbacks such as the need for regular oil maintenance and the potential fire hazard posed by the oil.

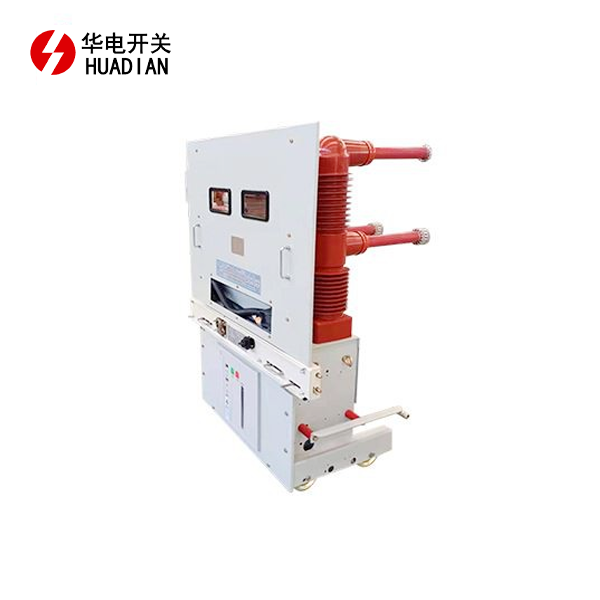

Vacuum Circuit Breaker Innovation

Vacuum circuit breakers represent a significant advancement in circuit breaker technology. These devices operate within a sealed vacuum chamber, eliminating the need for oil or gas as an insulating medium. When a fault occurs, the contacts separate in the vacuum, and the arc is quickly extinguished due to the lack of ionizable material. This results in faster arc extinction and less contact wear. Vacuum circuit breakers are known for their reliability, compact size, and minimal maintenance requirements.

Comparative Analysis: Oil Circuit Breaker vs. Vacuum Circuit Breaker

Arc Extinguishing Mechanism

The arc extinguishing mechanism is a key differentiator between oil and vacuum circuit breakers. In oil circuit breakers, the arc is quenched through the decomposition and vaporization of oil, creating a high-pressure gas that helps extinguish the arc. Conversely, vacuum circuit breakers rely on the rapid diffusion of arc in the vacuum environment. The lack of ionizable material in the vacuum chamber leads to a swift interruption of the current at the first current zero, making vacuum circuit breakers more efficient in arc extinction.

Maintenance Requirements and Lifespan

Maintenance is a significant factor in the operational costs of circuit breakers. Oil circuit breakers require regular oil changes and frequent maintenance to ensure the oil remains free from contaminants and moisture. This ongoing maintenance can be time-consuming and costly. In contrast, vacuum circuit breakers have minimal maintenance requirements. The sealed vacuum interrupter eliminates the need for oil changes or regular internal inspections. This low-maintenance characteristic, coupled with the reduced wear on contacts, contributes to a longer operational lifespan for vacuum circuit breakers, often exceeding 20 years with proper care.

Environmental Impact and Safety Considerations

Environmental impact is an increasingly important consideration in electrical equipment selection. Oil circuit breakers pose potential environmental risks due to the possibility of oil leaks or spills. Additionally, the oil used in these breakers can be flammable, presenting a fire hazard in certain situations. Vacuum circuit breakers, on the other hand, are more environmentally friendly. They don't use oil or gas, eliminating the risk of leaks or spills. The absence of combustible materials also enhances their safety profile, making them a preferred choice in environmentally sensitive applications or areas with stringent safety requirements.

Applications and Considerations for Choosing Between Oil and Vacuum Circuit Breakers

Voltage and Current Ratings

The choice between oil and vacuum circuit breakers often depends on the voltage and current ratings required for a specific application. Oil circuit breakers have traditionally been used for high-voltage applications, capable of handling voltages up to 765 kV. They are particularly effective in extra-high voltage systems where their arc-quenching capabilities are advantageous. Vacuum circuit breakers, while initially limited to medium voltage applications, have seen technological advancements that allow them to be used in higher voltage systems, typically up to 72.5 kV. For current ratings, both types can handle high currents, but vacuum circuit breakers often have an edge in terms of interrupting capacity at medium voltages.

Space and Weight Considerations

Space and weight are crucial factors in many electrical installations, particularly in urban substations or offshore applications. Vacuum circuit breakers hold a significant advantage in this aspect. They are considerably more compact and lighter than their oil counterparts. This reduced size and weight make vacuum circuit breakers easier to install and transport, and they require less floor space in substations. The compact nature of vacuum circuit breakers also allows for more flexible substation designs and can lead to cost savings in construction and infrastructure.

Cost Analysis: Initial Investment vs. Long-term Operational Expenses

When evaluating the cost-effectiveness of oil versus vacuum circuit breakers, it's essential to consider both the initial investment and long-term operational expenses. Oil circuit breakers generally have a lower initial cost, making them attractive for budget-constrained projects. However, their ongoing maintenance requirements, including regular oil changes and more frequent inspections, can lead to higher long-term operational costs. Vacuum circuit breakers, while often having a higher upfront cost, tend to be more economical in the long run due to their minimal maintenance needs, longer lifespan, and higher reliability. The reduced downtime for maintenance and lower risk of failure can result in significant cost savings over the life of the equipment.

Conclusion

The choice between oil circuit breakers and vacuum circuit breakers depends on various factors including voltage requirements, environmental considerations, maintenance capabilities, and long-term cost projections. While oil circuit breakers continue to be viable in certain high-voltage applications, vacuum circuit breakers are increasingly preferred for their reliability, compact size, and environmental benefits. As technology advances, the trend towards vacuum circuit breakers is likely to continue, especially in medium voltage applications where their advantages are most pronounced. Ultimately, the decision should be based on a comprehensive evaluation of the specific needs of the electrical system and the operational context.
