Understanding Vacuum Interrupter Technology
The Basics of Vacuum Interrupters

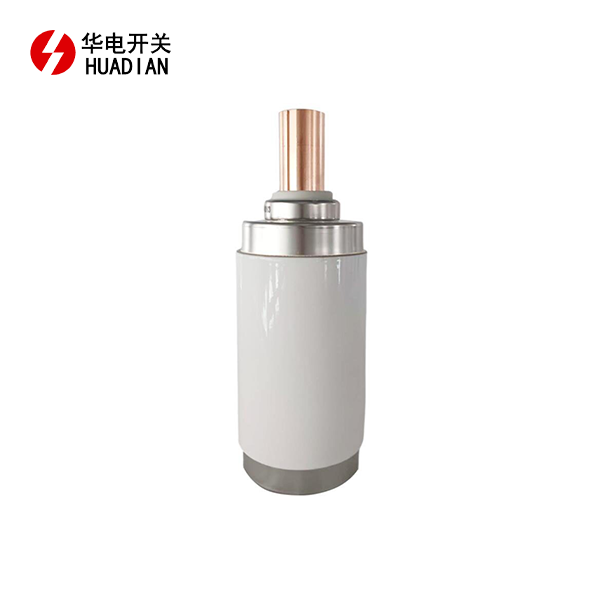

Vacuum interrupters are highly engineered devices used primarily in medium-voltage power systems to control electrical current. They function by separating electrical contacts within a sealed vacuum environment, effectively quenching the arc that forms during interruption. This vacuum prevents the presence of ionized gases that could sustain the arc, allowing for faster and cleaner current interruption. The sealed environment also eliminates the risk of oxidation and contamination on contact surfaces, which greatly enhances the interrupter’s reliability, efficiency, and operational lifespan.
Key Components of a Vacuum Interrupter
A typical vacuum interrupter consists of several critical components:
- Vacuum chamber: A sealed enclosure that maintains a high vacuum
- Contacts: Movable and fixed contacts made of specialized alloys
- Bellows: Flexible metal seals that allow contact movement while maintaining the vacuum
- Ceramic insulator: Provides electrical insulation and structural support
- Shield: Protects the ceramic insulator from metal vapor deposition
Understanding these components is crucial for effective maintenance and troubleshooting.Advantages of Vacuum Interrupter Technology
Vacuum interrupters offer significant advantages that make them ideal for modern electrical distribution systems. Their compact size allows for space-efficient designs without compromising interrupting capacity. Maintenance requirements are minimal due to the absence of gas refills and the clean operating environment. They have a long service life, typically lasting over 20,000 operations. Additionally, vacuum interrupters are environmentally benign, avoiding the use of greenhouse gases like SF₆. Their quick dielectric recovery ensures reliable arc suppression, making them both effective and safe for critical applications.
Essential Maintenance Procedures
Regular Inspection Protocols
Implementing a robust inspection routine is paramount for maintaining vacuum interrupter performance. Key inspection points include:
- Visual examination of the interrupter's exterior for signs of damage or corrosion
- Checking the integrity of insulation and connections
- Verifying the proper alignment of moving parts
- Assessing the condition of auxiliary contacts and control wiring
Regular inspections help identify potential issues before they escalate into major problems, ensuring the longevity of your vacuum interrupter.Cleaning and Lubrication Techniques
Proper cleaning and lubrication are essential for maintaining the optimal performance of vacuum interrupters:
- Use specialized cleaning agents designed for electrical equipment
- Apply lubricants sparingly to moving parts, avoiding contact with electrical components
- Remove any accumulated dust or debris using dry, lint-free cloths or compressed air
- Pay special attention to cooling fins and ventilation openings
Remember, always follow manufacturer guidelines for cleaning and lubrication procedures to avoid damaging sensitive components.Diagnostic Testing Procedures
Routine diagnostic testing provides critical insights into the functional health of vacuum interrupters, supporting predictive maintenance strategies. Contact resistance testing can reveal erosion or improper seating of the contacts. Vacuum integrity testing ensures the chamber maintains the required low-pressure environment for arc extinction. Insulation resistance tests help identify moisture intrusion or insulation degradation. Timing tests, which measure the speed and synchronization of contact movement, verify the responsiveness of the operating mechanism. These evaluations collectively help detect faults early and optimize the interrupter's operational life.
Troubleshooting and Problem Resolution
Common Issues and Their Causes
Vacuum interrupters may encounter various issues during their operational life:
- Contact wear: Caused by frequent switching or high current interruption
- Vacuum loss: Often due to seal failure or mechanical damage
- Mechanical malfunction: Can result from misalignment or component wear
- Insulation degradation: May occur due to environmental factors or electrical stress
Recognizing these issues early is crucial for maintaining system reliability and preventing unplanned outages.Advanced Diagnostic Techniques
When standard tests prove inconclusive, advanced diagnostic methods can provide deeper insights:
- Partial discharge analysis to detect insulation weaknesses
- Thermographic imaging to identify hot spots and potential failure points
- Dynamic contact resistance measurement for detailed contact condition assessment
- X-ray analysis for internal inspection without disassembly
These techniques allow for a more comprehensive evaluation of the interrupter's condition, facilitating targeted maintenance and repair strategies.Repair vs. Replacement Considerations
Deciding between repairing or replacing a vacuum interrupter requires careful consideration:
- Evaluate the cost of repair against the price of a new unit
- Consider the age and overall condition of the interrupter
- Assess the availability of spare parts and repair expertise
- Factor in the potential downtime associated with each option
In some cases, upgrading to a newer model may offer long-term benefits in terms of performance and reliability.Conclusion
Mastering the art of vacuum interrupter maintenance is crucial for ensuring the reliability and longevity of electrical systems. By implementing regular inspection routines, adhering to proper cleaning and lubrication practices, and utilizing advanced diagnostic techniques, you can significantly enhance the performance and lifespan of your vacuum interrupters. Remember, proactive maintenance not only prevents costly breakdowns but also contributes to the overall efficiency and safety of your electrical infrastructure. Stay vigilant, stay informed, and your vacuum interrupters will continue to serve as dependable guardians of your electrical systems for years to come.
