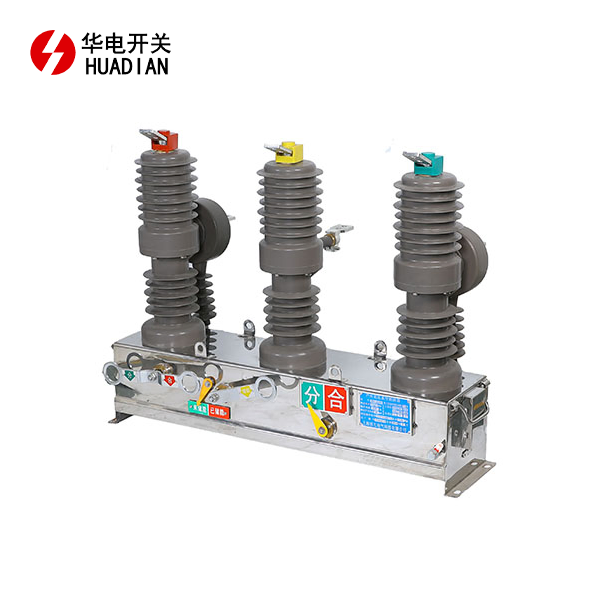

Understanding Outdoor Vacuum Circuit Breakers
Operational Principles of Vacuum Circuit Breakers
Outdoor vacuum circuit breakers operate on a fascinating principle. Within a sealed vacuum chamber, electrical contacts separate when a fault occurs. The vacuum's unique properties enable it to quickly extinguish the arc formed during this separation, effectively interrupting the circuit. This process happens in milliseconds, providing rapid and reliable protection for electrical systems.
The vacuum's excellent dielectric strength allows for efficient arc quenching, even at high voltages. As the contacts separate, the arc is stretched and cooled, eventually breaking down and interrupting the current flow. This mechanism ensures minimal wear on the contacts, contributing to the breaker's long lifespan and reliability.
Advantages of Outdoor Vacuum Circuit Breakers
Outdoor vacuum circuit breakers boast numerous advantages that make them a preferred choice in many applications. Their compact design allows for installation in space-constrained areas, making them ideal for retrofitting older substations or in urban environments where real estate is at a premium.
These breakers are also known for their exceptional reliability. With fewer moving parts compared to other types of circuit breakers, they have lower maintenance requirements and a reduced likelihood of mechanical failures. This translates to lower operational costs and improved system uptime.
Moreover, vacuum circuit breakers are environmentally friendly. Unlike SF6 breakers, they don't use greenhouse gases, aligning well with global efforts to reduce carbon footprints in industrial applications. This eco-friendly aspect is becoming increasingly important as industries worldwide strive to meet stringent environmental regulations.
Applications of Outdoor Vacuum Circuit Breakers
The versatility of outdoor vacuum circuit breakers makes them suitable for a wide range of applications. They're commonly used in medium-voltage distribution systems, typically ranging from 12kV to 40.5kV. These breakers excel in protecting transformers, capacitor banks, and feeder lines in both utility and industrial settings.
In renewable energy sectors, such as wind and solar farms, outdoor vacuum circuit breakers play a crucial role. They provide reliable protection for the interconnection between these renewable sources and the main grid, ensuring smooth integration of green energy into existing power systems.
Additionally, these breakers are increasingly being adopted in railway electrification projects. Their compact size and high reliability make them ideal for the space-constrained and demanding environments of railway substations, where consistent performance is critical for maintaining uninterrupted transportation services.
Exploring SF6 Circuit Breakers
Working Mechanism of SF6 Circuit Breakers
SF6 circuit breakers utilize sulfur hexafluoride (SF6) gas as the arc-quenching medium. When a fault occurs, the breaker's contacts separate within a chamber filled with pressurized SF6 gas. As the arc forms between the separating contacts, the SF6 gas decomposes due to the intense heat. This decomposition absorbs energy from the arc, cooling and eventually extinguishing it.
The SF6 gas then recombines, returning to its original state. This self-healing property of SF6 gas is one of the key reasons for its widespread use in high-voltage circuit breakers. The gas's excellent insulating and arc-quenching properties allow SF6 breakers to handle high voltages efficiently, making them a staple in many high-voltage applications.
Pros and Cons of SF6 Circuit Breakers
SF6 circuit breakers have several advantages that have contributed to their widespread use. They offer excellent insulation properties, allowing for compact designs even at very high voltages. SF6 breakers are also known for their reliability and long service life, often operating for decades with minimal maintenance, although in some outdoor applications, outdoor vacuum circuit breakers may be preferred.
However, SF6 breakers come with significant drawbacks. The most notable is the environmental impact of SF6 gas. It's a potent greenhouse gas with a global warming potential 23,500 times that of CO2 over a 100-year period. Leaks during operation or improper disposal at end-of-life can have severe environmental consequences.
Additionally, SF6 breakers require specialized handling and maintenance due to the nature of the gas. This can increase operational costs and requires specific safety protocols. The global push to reduce greenhouse gas emissions is also putting pressure on industries to phase out SF6 equipment, potentially leading to future regulatory challenges for users of SF6 breakers.
Common Uses of SF6 Circuit Breakers
SF6 circuit breakers have been widely used in high-voltage transmission systems, typically above 72.5kV. They're commonly found in substations, where their compact size and high-voltage handling capability make them suitable for space-constrained urban environments.
In the power generation sector, SF6 breakers are often used to protect large generators and transformers. Their ability to handle high fault currents makes them well-suited for these applications where rapid and reliable interruption of high-energy faults is crucial.
SF6 breakers are also used in some specialized industrial applications, such as in large metal smelting operations or high-energy physics research facilities, where their high-voltage and high-current interruption capabilities are valuable. However, the growing environmental concerns are prompting many industries to seek alternatives, even in these specialized applications.
Comparative Analysis: Outdoor Vacuum vs SF6 Circuit Breakers
Performance and Reliability Comparison
When comparing the performance of outdoor vacuum circuit breakers and SF6 circuit breakers, several factors come into play. Vacuum breakers generally offer faster operation times, with typical opening times of 3-5 cycles compared to 5-8 cycles for SF6 breakers. This faster operation can be crucial in limiting fault damage in critical applications.
In terms of reliability, both types of breakers can offer excellent performance when properly maintained. However, vacuum breakers often edge out SF6 breakers in this aspect. The simpler mechanism of vacuum breakers, with fewer moving parts, translates to higher reliability and lower maintenance requirements over time. SF6 breakers, while reliable, require more complex maintenance procedures due to the presence of pressurized gas.
It's worth noting that the performance of SF6 breakers can be affected by extreme temperatures, as the gas pressure changes with temperature. Vacuum breakers, on the other hand, maintain consistent performance across a wider temperature range, making them more suitable for diverse climatic conditions.
Environmental Impact and Safety Considerations
The environmental impact is perhaps the most significant differentiator between outdoor vacuum circuit breakers and SF6 circuit breakers. Vacuum breakers are inherently more environmentally friendly, as they don't use any greenhouse gases in their operation. This aligns well with global efforts to reduce carbon footprints and meets increasingly stringent environmental regulations.
SF6, used in SF6 breakers, is a potent greenhouse gas with a global warming potential 23,500 times that of CO2. Even small leaks can have significant environmental impacts. Moreover, SF6 gas requires careful handling and disposal, adding to the environmental and safety considerations throughout the breaker's lifecycle.
From a safety perspective, vacuum breakers have an advantage. They don't involve any pressurized gas, eliminating the risk of gas leaks or explosions. The maintenance of vacuum breakers is also generally safer, as it doesn't involve handling potentially harmful gases.
Cost-Effectiveness and Long-Term Value
When evaluating the cost-effectiveness of outdoor vacuum circuit breakers versus SF6 circuit breakers, it's essential to consider both initial and long-term costs. Initially, SF6 breakers might have a slight edge in terms of purchase price, especially for higher voltage applications. However, the long-term cost analysis often favors vacuum breakers.
Vacuum breakers typically have lower maintenance costs due to their simpler design and lack of gas handling requirements. They also tend to have longer operational lifespans, often exceeding 20,000 operations compared to 5,000-10,000 for typical SF6 breakers. This longevity translates to lower replacement costs over time.
Furthermore, as environmental regulations tighten, the costs associated with SF6 handling, leak detection, and end-of-life disposal are likely to increase. This could significantly impact the total cost of ownership for SF6 breakers. In contrast, vacuum breakers avoid these potential future costs, offering more predictable and often lower long-term expenses.
Conclusion
In the debate between outdoor vacuum circuit breakers and SF6 circuit breakers, vacuum technology emerges as the more promising option for many applications. While SF6 breakers have served the industry well for decades, the superior environmental profile, lower maintenance requirements, and long-term cost-effectiveness of vacuum breakers make them an increasingly attractive choice. As the world moves towards more sustainable technologies, outdoor vacuum circuit breakers are well-positioned to meet both current needs and future challenges in electrical power systems. Their combination of reliability, safety, and eco-friendliness makes them a smart investment for forward-thinking utilities and industries.
