Unparalleled Electrical Insulation Properties of Epoxy Resin
High Dielectric Strength
Epoxy resin boasts an impressive dielectric strength, allowing it to withstand substantial voltage gradients without breaking down. This property is crucial for insulation barriers, as it prevents electrical current from passing through the material. The high dielectric strength of epoxy resin ensures that electrical components remain isolated, reducing the risk of short circuits and electrical failures. In practical applications, this translates to enhanced safety and reliability in high-voltage environments, making epoxy resin an indispensable material for power distribution systems and electrical machinery.
Low Electrical Conductivity
The inherently low electrical conductivity of epoxy resin is a key factor in its effectiveness as an insulation barrier. This characteristic minimizes the flow of electric current through the material, effectively isolating conductive components. The resistance to electrical flow helps maintain the integrity of circuits and prevents unintended current paths. In complex electrical systems, where multiple components are in close proximity, the low conductivity of epoxy resin insulation barriers ensures that each element functions independently without interference, contributing to the overall system efficiency and longevity.
Excellent Volume Resistivity
Volume resistivity is a critical parameter in insulation materials, and epoxy resin excels in this aspect. Its high volume resistivity indicates the material's ability to resist the passage of electric current through its bulk. This property is particularly important in three-dimensional insulation applications, where the barrier must provide comprehensive protection. The superior volume resistivity of epoxy resin ensures that it maintains its insulating properties throughout its entire structure, not just on the surface. This comprehensive insulation capability makes epoxy resin ideal for encapsulating sensitive electronic components and creating robust insulation barriers in transformers and other high-voltage equipment.
Durability and Longevity of Epoxy Resin Insulation Barriers
Resistance to Environmental Factors
Epoxy resin insulation barriers demonstrate remarkable resilience against various environmental challenges. Their resistance to moisture, humidity, and water ingress is particularly noteworthy, preventing the degradation of insulation properties over time. This moisture resistance is crucial in outdoor electrical installations and marine applications, where exposure to water is constant. Additionally, epoxy resin exhibits excellent resistance to UV radiation, maintaining its structural integrity and insulation properties even under prolonged sun exposure. This UV stability ensures that outdoor insulation barriers remain effective for extended periods without requiring frequent replacements or maintenance.
Chemical Resistance Properties
The chemical resistance of epoxy resin is a significant advantage in industrial and harsh environments. Insulation barriers made from epoxy resin can withstand exposure to a wide range of chemicals, including acids, alkalis, and solvents. This resistance prevents chemical degradation that could compromise the insulation's effectiveness. In industrial settings, where electrical equipment may be exposed to corrosive substances or chemical vapors, epoxy resin insulation barriers provide a robust defense. The material's ability to maintain its insulating properties in chemically aggressive environments ensures the longevity and reliability of electrical systems in chemical processing plants, refineries, and other industrial facilities.
Thermal Stability and Heat Resistance
Epoxy resin's thermal stability and heat resistance are crucial for insulation barriers in high-temperature applications. The material retains its electrical insulation properties across a wide temperature range, from cryogenic conditions to elevated temperatures. This thermal stability ensures that the insulation barrier remains effective in environments with significant temperature fluctuations or consistent high-temperature exposure. In electrical motors, transformers, and other heat-generating equipment, epoxy resin insulation barriers provide reliable protection without compromising performance. The material's ability to withstand thermal stress without cracking or deforming contributes to the overall durability and longevity of the insulation system.
Versatility and Application Methods of Epoxy Resin for Insulation Barriers
Casting and Molding Techniques

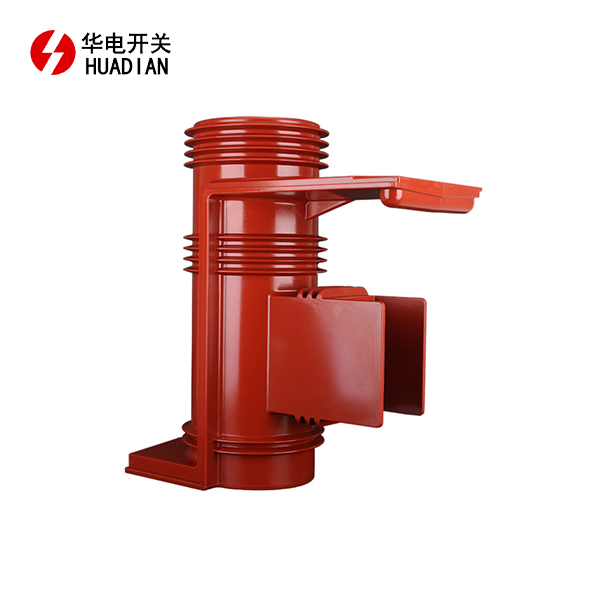

Epoxy resin's versatility in casting and molding techniques makes it an ideal choice for creating complex insulation barriers. The liquid nature of uncured epoxy allows it to be poured into molds of various shapes and sizes, enabling the production of custom-fit insulation components. This flexibility is particularly valuable in the manufacture of intricate electrical parts, such as bushings and insulators. The casting process ensures that the epoxy resin fills all voids and crevices, creating a seamless insulation barrier that conforms perfectly to the required geometry. Advanced molding techniques, including vacuum casting, further enhance the quality of epoxy resin insulation barriers by eliminating air bubbles and ensuring uniform density throughout the component.
Vacuum Pressure Impregnation (VPI)
Vacuum Pressure Impregnation (VPI) is a sophisticated application method that maximizes the effectiveness of epoxy resin as an insulation barrier. This process involves placing the component to be insulated in a vacuum chamber, evacuating the air, and then introducing liquid epoxy resin under pressure. The vacuum ensures that the resin penetrates even the smallest pores and voids within the material or structure being insulated. VPI is particularly beneficial for insulating complex assemblies, such as motor windings and transformer coils. The resulting insulation barrier is exceptionally dense and uniform, providing superior protection against electrical breakdown and environmental factors. The VPI process with epoxy resin significantly enhances the longevity and reliability of high-voltage electrical equipment.
Spray and Brush Application Methods
For larger surfaces or field applications, epoxy resin can be applied using spray or brush techniques, offering flexibility in insulation barrier creation. Spray application is particularly effective for covering large areas quickly and uniformly, such as in the insulation of electrical panels or switchgear enclosures. This method allows for precise control over the thickness of the insulation layer and can be adapted to various surface geometries. Brush application, while more labor-intensive, is suitable for smaller areas or touch-up work. It provides excellent control for applying epoxy resin insulation barriers in hard-to-reach places or on irregular surfaces. Both methods can be used with specially formulated epoxy resins that cure at room temperature, facilitating on-site application and repairs of insulation barriers without the need for complex equipment or controlled environments.
Conclusion
Epoxy resin's combination of superior electrical insulation properties, exceptional durability, and versatile application methods solidifies its position as the ideal material for insulation barriers. Its ability to provide robust protection against electrical, environmental, and chemical challenges ensures the longevity and reliability of electrical systems across various industries. The adaptability of epoxy resin to different application techniques allows for the creation of customized insulation solutions, meeting the diverse needs of modern electrical engineering. As technology advances and electrical systems become more complex, the role of epoxy resin in creating effective insulation barriers will continue to be crucial, driving innovation and enhancing the safety and efficiency of electrical infrastructure worldwide.
