Preparation and Safety Measures
Site Assessment and Planning
Before beginning the installation of your GZDW DC power panel, it's essential to conduct a thorough site assessment. This involves evaluating the location where the panel will be installed, considering factors such as accessibility, ventilation, and proximity to other electrical equipment. Measure the available space to ensure it can accommodate the panel's dimensions. Additionally, review the building's electrical plans and identify the power sources that will feed into the DC panel. This preparatory step will help you avoid potential obstacles and streamline the installation process.
Gathering Necessary Tools and Equipment
Assembling the right tools and equipment is crucial for a smooth installation. You'll need various items, including insulated screwdrivers, wire strippers, multimeters, and personal protective equipment (PPE) such as safety glasses and insulated gloves. For the GZDW DC power panel installation, you may also require specialized tools like torque wrenches and cable lugs. Having all these tools readily available will prevent delays and ensure you can complete each step of the installation efficiently.
Implementing Safety Protocols
Safety should be your top priority when working with electrical systems. Before starting the installation, establish clear safety protocols and brief all team members involved. This includes implementing a lockout/tagout procedure to ensure the power is completely off and cannot be accidentally energized during installation. Set up proper barriers and signage to restrict access to the work area. It's also advisable to have a first aid kit and fire extinguisher nearby in case of emergencies. By prioritizing safety, you create a secure environment for the installation process.
Installation Process

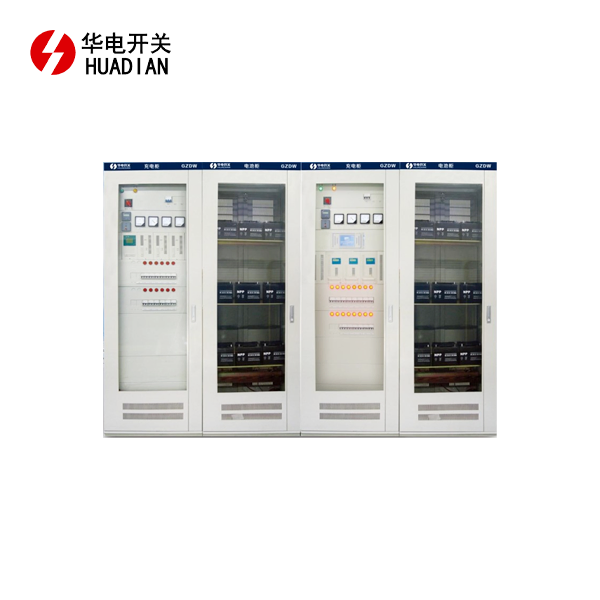

Mounting the GZDW DC Power Panel
The first step in the physical installation is mounting the GZDW DC power panel securely. Begin by marking the mounting points on the wall or rack where the panel will be installed. Use a level to ensure the markings are perfectly straight. Depending on the panel's weight and the wall material, you may need to install mounting brackets or use heavy-duty anchors. When lifting the panel into place, use proper lifting techniques and, if necessary, mechanical assistance to avoid injury. Once positioned, secure the panel firmly using the appropriate fasteners, ensuring it's level and stable.
Wiring and Connections
With the panel mounted, the next critical step is wiring. Start by identifying all the necessary connections, including input power sources, output circuits, and grounding. Follow the manufacturer's wiring diagram for the GZDW DC power panel carefully. Use the correct gauge of wire for each connection, ensuring it can handle the expected current load. When making connections, strip the wires cleanly and use appropriate terminations such as ring or spade connectors. Pay special attention to polarity when connecting DC circuits, as reversed polarity can cause severe damage to equipment. Label all wires clearly for future reference and maintenance.
Installing Circuit Breakers and Fuses
Circuit breakers and fuses are crucial components of your DC power panel, providing protection against overloads and short circuits. Install these protective devices according to the panel's specifications and your system's requirements. Ensure each circuit breaker or fuse is rated appropriately for its intended load. When inserting circuit breakers, make sure they click securely into place. For fuse installations, use the correct fuse holder and verify that the fuse is seated properly. Double-check that all protective devices are easily accessible for future maintenance or replacement.
Testing and Commissioning
Conducting Insulation Resistance Tests
Before energizing the GZDW DC power panel, it's crucial to perform insulation resistance tests. These tests help identify any potential insulation faults or short circuits that could lead to system failures or safety hazards. Use a high-quality insulation tester to check the resistance between each conductor and ground, as well as between different conductors. The measured resistance should be within the manufacturer's specified range. If any measurements fall below the acceptable threshold, investigate and rectify the issue before proceeding. Proper insulation testing ensures the integrity of your electrical system and prevents future problems.
Verifying Voltage and Polarity
Once the insulation tests are complete, the next step is to verify the voltage levels and polarity of the DC power panel. Use a calibrated multimeter to check the voltage at various points in the system, ensuring they match the expected values. Pay particular attention to the polarity of DC connections, as reversed polarity can cause significant damage to connected equipment. Verify that positive and negative terminals are correctly identified and connected throughout the system. This step is crucial for the safe and proper operation of your GZDW DC power panel and the devices it powers.
Load Testing and System Monitoring
The final phase of commissioning involves load testing and system monitoring. Gradually apply loads to the DC power panel, starting with smaller loads and progressively increasing to full capacity. Monitor voltage levels, current draw, and temperature throughout this process. Look for any signs of voltage drop, excessive current, or overheating. If your GZDW DC power panel includes monitoring capabilities, configure and test these features to ensure they're functioning correctly. This may include setting up alarms for various parameters such as low voltage or high temperature. Comprehensive load testing and monitoring help identify any potential issues before the system goes into full operation.
Conclusion
Installing a GZDW DC power panel is a complex but manageable process that requires careful planning, precise execution, and thorough testing. By following this step-by-step guide, you can ensure a safe and effective installation that will provide reliable DC power distribution for your facility. Remember that proper installation is crucial for the longevity and performance of your electrical system. Regular maintenance and inspections will help keep your DC power panel operating at peak efficiency, providing a stable power supply for your critical equipment for years to come.
