Understanding High Voltage Switchgear

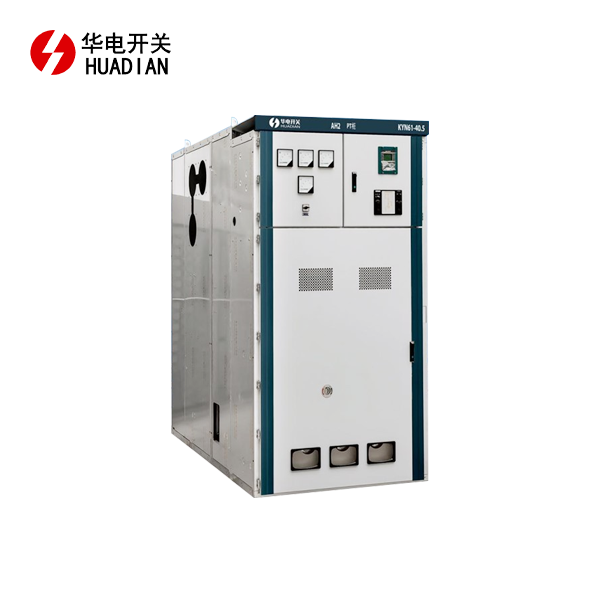

Components of High Voltage Switchgear
High voltage switchgear comprises several crucial components that work together to ensure safe and efficient operation of electrical systems. These components include circuit breakers, disconnectors, earthing switches, and instrument transformers. Circuit breakers are the heart of the switchgear, designed to interrupt fault currents and protect the system from overloads. Disconnectors provide visible isolation points for maintenance and safety purposes. Earthing switches are used to ground equipment when necessary, while instrument transformers measure voltage and current for monitoring and protection purposes.
Applications of High Voltage Switchgear
High voltage switchgear finds applications in various sectors where large amounts of electrical power are generated, transmitted, or distributed. Power plants utilize HV switchgear to control and protect generators and transformers. Transmission substations employ this equipment to manage the flow of electricity across long distances. Distribution substations use HV switchgear to step down voltage levels for local distribution networks. Industries with high power requirements, such as steel mills and petrochemical plants, also rely on HV switchgear for their operations.
Advantages of High Voltage Switchgear
The benefits of high voltage switchgear are numerous and significant. It enables efficient long-distance power transmission by minimizing power losses. HV switchgear provides robust protection against faults and overloads, enhancing the reliability of electrical systems. Its ability to handle high power loads makes it indispensable for large-scale industrial applications. Modern HV switchgear often incorporates advanced monitoring and control systems, allowing for remote operation and predictive maintenance. These features contribute to improved system performance, reduced downtime, and enhanced safety for personnel and equipment.
Low Voltage Switchgear Essentials
Key Elements of Low Voltage Switchgear
Low voltage switchgear, while serving similar purposes as its high voltage switchgear counterpart, has its own unique set of components. These typically include molded case circuit breakers (MCCBs), air circuit breakers (ACBs), contactors, and relays. MCCBs are compact devices used for overcurrent protection in lower power circuits. ACBs are larger and more capable, often used as main circuit breakers in LV systems. Contactors are electromagnetic switches used for frequent switching operations, while relays provide control and protection functions.
Common Uses of Low Voltage Switchgear
Low voltage switchgear is ubiquitous in our daily lives, found in residential, commercial, and light industrial settings. In homes, LV switchgear is present in distribution boards, protecting circuits and appliances. Office buildings and shopping centers use LV switchgear for lighting, HVAC systems, and general power distribution. Small to medium-sized factories employ LV switchgear to control machinery and manage power distribution within the facility. Data centers, hospitals, and other critical facilities also rely heavily on low voltage and high voltage switchgear for reliable power management and protection.
Benefits of Low Voltage Switchgear
Low voltage switchgear offers several advantages that make it ideal for its intended applications. Its compact size allows for installation in spaces where high voltage switchgear would be impractical. LV switchgear is generally less expensive to purchase, install, and maintain compared to HV equipment. It provides excellent protection for low voltage circuits, enhancing the safety of buildings and equipment. Modern LV switchgear often incorporates energy monitoring features, helping users optimize their power consumption. The modular nature of many LV switchgear systems allows for easy expansion and modification as needs change.
Comparing HV and LV Switchgear
Design and Construction Differences
The design and construction of HV and LV switchgear differ significantly due to their voltage ratings and applications. High voltage switchgear typically requires more robust insulation materials and larger clearances between live parts to prevent electrical breakdown. It often utilizes SF6 gas or vacuum as an insulating medium in circuit breakers. LV switchgear, conversely, can use air as an insulating medium and has smaller clearances. High voltage switchgear tends to be much larger and heavier, often requiring dedicated buildings or outdoor installations, while LV switchgear can be more compact and is often installed indoors in electrical rooms or cabinets.
Safety Considerations
Safety is paramount in both HV and LV switchgear, but the approaches differ due to the voltage levels involved. High voltage switchgear requires strict safety protocols, including specialized personal protective equipment (PPE) and extensive safety interlocks. Remote operation is often employed to minimize personnel exposure to high voltages. LV switchgear, while still requiring caution, allows for closer interaction. It often incorporates features like finger-safe terminals and insulated busbars to reduce shock hazards. Both types of switchgear must comply with relevant safety standards and regulations, which are typically more stringent for high voltage switchgear.
Maintenance and Lifespan
Maintenance requirements and expected lifespans vary between HV and LV switchgear. High voltage switchgear generally requires more specialized maintenance, including regular testing of insulation, contact resistance measurements, and gas pressure checks for SF6-insulated equipment. Its lifespan can extend to 30-40 years with proper maintenance. LV switchgear typically has lower maintenance requirements, often limited to visual inspections, cleaning, and occasional testing of protection devices. Its lifespan is usually shorter, around 20-30 years, but this can vary depending on the operating environment and maintenance practices. Both types benefit from condition-based maintenance approaches, utilizing modern monitoring technologies to optimize maintenance schedules and extend equipment life.
Conclusion
Understanding the differences between HV and LV switchgear is crucial for electrical system design and management. While both serve the fundamental purpose of controlling, protecting, and isolating electrical equipment, their applications, design considerations, and operational requirements differ significantly. High voltage switchgear plays a vital role in power transmission and distribution, handling massive amounts of energy efficiently. LV switchgear, equally important, manages power distribution in our everyday environments. As technology advances, both types of switchgear continue to evolve, offering improved performance, safety, and energy efficiency. Choosing the right switchgear for a specific application requires careful consideration of voltage levels, power requirements, space constraints, and safety needs.
