Troubleshooting Common Issues with the ERD-12/1250-25 Vacuum Interrupter

The ERD-12/1250-25 vacuum interrupter is a crucial component in electrical systems, known for its reliability and performance. However, like any sophisticated equipment, it may encounter issues that require troubleshooting. This comprehensive guide delves into common problems associated with the ERD-12/1250-25 vacuum interrupter and provides practical solutions. We'll explore various aspects, from mechanical malfunctions to electrical irregularities, offering insights that will help maintain optimal functionality. Whether you're a seasoned technician or a curious engineer, this article aims to enhance your understanding and troubleshooting skills for this specific vacuum interrupter model.

Understanding the ERD-12/1250-25 Vacuum Interrupter

Key Components and Their Functions

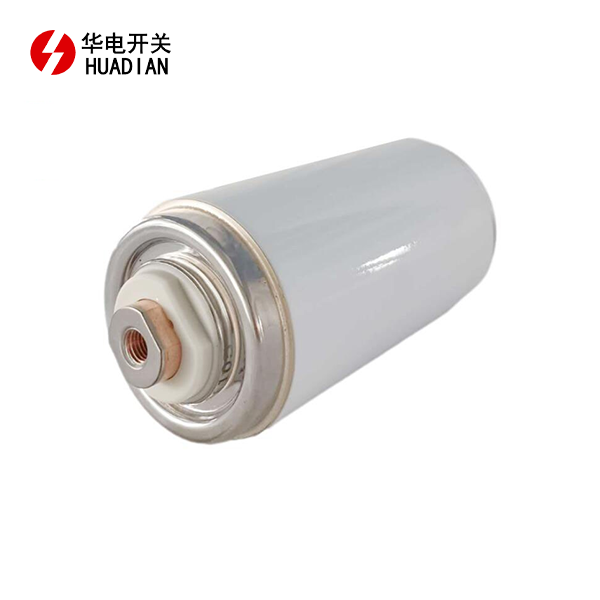

The ERD-12/1250-25 vacuum interrupter is a sophisticated device comprising several critical components. The vacuum bottle, at its core, houses the contacts responsible for current interruption. These contacts are typically made of copper-chromium alloy, chosen for its excellent arc-quenching properties and resistance to welding. The ceramic insulator surrounding the vacuum bottle provides electrical isolation and mechanical strength. The bellows system allows for contact movement while maintaining the vacuum seal. Understanding these components is crucial for effective troubleshooting.

Operating Principles

The ERD-12/1250-25 operates on the principle of arc extinction in a vacuum. When the contacts separate, the current continues to flow through a metal vapor arc. As the contacts move further apart, the arc is stretched and cooled, eventually extinguishing at the first current zero. This process happens in milliseconds, making the vacuum interrupter highly efficient at breaking currents. The vacuum environment allows for faster dielectric recovery compared to air or oil-filled breakers, contributing to its superior performance.

Typical Applications

This vacuum interrupter model finds extensive use in medium-voltage switchgear, particularly in the 12kV range. It's commonly employed in power distribution systems, industrial facilities, and renewable energy installations. The ERD-12/1250-25 vacuum interrupter's ability to handle rated currents up to 1250A and short-circuit currents up to 25kA makes it versatile for various applications. Its compact size and low maintenance requirements have made it a preferred choice in modern electrical systems where reliability and space efficiency are paramount.

Common Issues and Troubleshooting Techniques

Mechanical Problems

Mechanical issues are among the most frequent problems encountered with the ERD-12/1250-25 vacuum interrupter. One common issue is sticking or binding of the moving contact. This can be caused by misalignment, wear of mechanical components, or contamination. To troubleshoot, inspect the operating mechanism for signs of wear or damage. Lubricate moving parts as per manufacturer specifications. If the problem persists, check for proper alignment of the interrupter within the circuit breaker assembly.

Another mechanical concern is the degradation of the bellows system. Over time, the bellows may develop leaks, compromising the vacuum integrity. Regular inspection of the bellows for signs of fatigue or damage is crucial. If a leak is suspected, perform a vacuum integrity test using specialized equipment. Replacement of the entire interrupter may be necessary if a significant leak is detected.

Electrical Faults

Electrical issues with the ERD-12/1250-25 vacuum interrupter can manifest in various ways. High contact resistance is a common problem that can lead to overheating and reduced efficiency. To diagnose this, perform a contact resistance test using a micro-ohmmeter. Values exceeding manufacturer specifications indicate a problem. Possible causes include contact erosion, contamination, or improper contact pressure. In some cases, conditioning the contacts by performing several no-load operations can help reduce resistance.

Another electrical fault to watch for is insulation breakdown. This can occur due to aging, environmental factors, or electrical stress. Conduct insulation resistance tests regularly to detect any deterioration. If low insulation resistance is observed, inspect for visible damage to the ceramic insulator. In severe cases, partial discharge testing may be necessary to identify internal insulation issues.

Vacuum Loss

Loss of vacuum is a critical issue that can severely impact the interrupter's performance. Signs of vacuum loss include increased contact wear, reduced dielectric strength, and in extreme cases, visible arcing during operation. To troubleshoot, start with a visual inspection for any cracks or damage to the ceramic envelope. Perform a high-potential test to check the dielectric strength across the open contacts. If vacuum loss is confirmed, the interrupter will likely need replacement.

It's important to note that vacuum loss can sometimes be gradual. Regular monitoring of interrupter performance, including tracking of operations count and periodic diagnostic tests, can help detect vacuum degradation before it leads to failure. In some cases, x-ray imaging can be used to assess the internal condition of the interrupter without disassembly.

Preventive Maintenance and Best Practices

Regular Inspection Routines

Implementing a robust inspection routine is crucial for maintaining the ERD-12/1250-25 vacuum interrupter's reliability. Visual inspections should be conducted at regular intervals, focusing on external signs of wear, damage, or contamination. Check for any cracks in the ceramic insulator, signs of overheating on terminals, and proper alignment of the interrupter within the circuit breaker assembly. It's also important to verify the integrity of all connections and the condition of auxiliary contacts if present.

Mechanical operation checks should be performed periodically. This includes measuring and recording opening and closing times, and ensuring smooth operation of the mechanism. Any deviations from baseline measurements should be investigated promptly. Additionally, inspect the condition of lubricants on moving parts and reapply as necessary, following manufacturer guidelines.

Diagnostic Testing

Diagnostic testing plays a vital role in preventive maintenance of the ERD-12/1250-25. Contact resistance measurements should be taken at regular intervals to track any changes over time. An increase in contact resistance can indicate wear or contamination of the contacts. Insulation resistance tests are equally important, helping to detect any degradation in the insulating properties of the interrupter.

For more comprehensive analysis, consider performing power factor tests and partial discharge measurements. These tests can provide insights into the overall health of the interrupter and help identify potential issues before they lead to failure. It's important to maintain accurate records of all test results to facilitate trend analysis and predictive maintenance strategies.

Environmental Considerations

The environment in which the ERD-12/1250-25 operates can significantly impact its performance and longevity. In high-humidity environments, consider implementing dehumidification measures to prevent moisture ingress. For installations in areas prone to seismic activity, ensure proper mounting and consider additional bracing if necessary.

Temperature extremes can also affect the interrupter's performance. In very cold environments, heating elements may be necessary to prevent condensation and ensure proper operation of the mechanism. Conversely, in high-temperature environments, adequate ventilation is crucial to prevent overheating. Regular cleaning to remove dust and contaminants is essential, especially in industrial settings where airborne particles are common.

Conclusion

Effective troubleshooting and maintenance of the ERD-12/1250-25 vacuum interrupter are essential for ensuring the reliability and longevity of electrical systems. By understanding common issues and implementing proactive maintenance strategies, operators can minimize downtime and extend the life of their equipment. Regular inspections, timely diagnostics, and adherence to manufacturer guidelines are key to optimal performance. As technology evolves, staying informed about the latest maintenance techniques and diagnostic tools will further enhance the ability to effectively manage and maintain these critical components in electrical infrastructure.
