The Composition and Functionality of Metal Oxide Arresters
Core Components of Metal Oxide Arresters

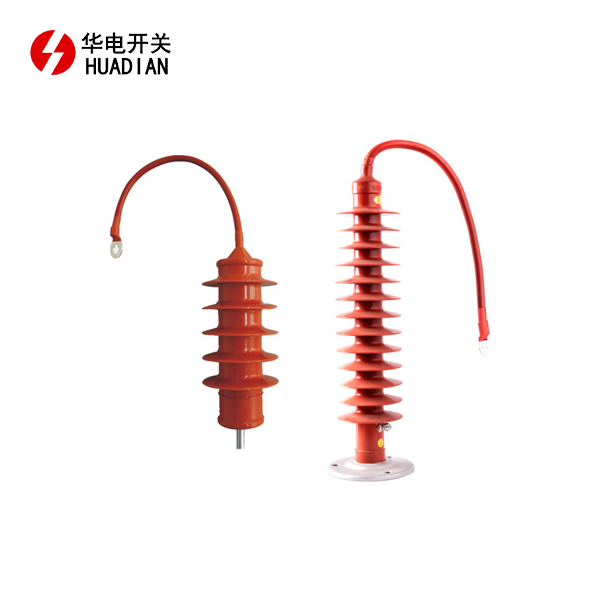

Metal oxide arresters are composed of several key elements that work in harmony to provide effective surge protection. The heart of these devices is a stack of metal oxide varistor (MOV) discs, typically made from zinc oxide with small amounts of other metal oxides. These discs are arranged in series and parallel configurations to achieve the desired voltage rating and energy absorption capacity. The MOV discs are encased in a robust housing, often made of polymer or porcelain, which provides mechanical strength and insulation.
Operating Principles of Metal Oxide Arresters
The functionality of metal oxide arresters relies on the unique electrical properties of MOV discs. Under normal operating conditions, these discs exhibit high resistance, allowing only a minimal leakage current to flow. However, when a voltage surge occurs, the resistance of the MOV discs drops dramatically, creating a low-impedance path for the excess current. This rapid response effectively clamps the voltage to a safe level, protecting connected equipment from damage. Once the surge subsides, the arrester quickly returns to its high-resistance state, ready to respond to future events.
Advantages of Metal Oxide Technology
Metal oxide arresters with all-insulated compound coat offer several advantages over traditional surge protection devices. Their fast response time, typically in the order of nanoseconds, ensures immediate protection against rapid voltage transients. The non-linear voltage-current characteristic of MOV discs allows for precise voltage clamping, minimizing the risk of equipment damage. Additionally, metal oxide arresters have a high energy absorption capacity, enabling them to handle multiple surge events without degradation. These features make them ideal for use in a wide range of applications, from low-voltage consumer electronics to high-voltage power transmission systems.
The All-Insulated Compound Coat: Enhancing Performance and Longevity
Composition of the All-Insulated Compound Coat
Metal oxide arresters with all-insulated compound coat is a specialized protective layer applied to metal oxide arresters. This coating typically consists of advanced polymeric materials, such as silicone rubber or ethylene propylene diene monomer (EPDM). These compounds are carefully formulated to provide a balance of electrical insulation, mechanical strength, and environmental resistance. The coating may also incorporate additives to enhance specific properties, such as UV resistance or hydrophobicity.
Benefits of the All-Insulated Compound Coat
The application of an all-insulated compound coat significantly enhances the performance and durability of metal oxide arresters. This protective layer acts as a barrier against environmental factors such as moisture, pollution, and UV radiation, which can degrade the arrester's performance over time. The coat also improves the arrester's resistance to surface discharges and partial discharge activity, reducing the risk of insulation failure. Furthermore, the smooth, hydrophobic surface of the compound coat helps to maintain the arrester's performance in wet conditions by preventing water accumulation and reducing leakage current.
Manufacturing Process and Quality Control
The application of the all-insulated compound coat requires precise manufacturing techniques to ensure uniform coverage and optimal adhesion to the arrester housing. Advanced molding processes, such as injection molding or transfer molding, are often employed to achieve consistent results. Rigorous quality control measures, including visual inspections, electrical tests, and accelerated aging tests, are implemented to verify the integrity and performance of the coated arresters. These stringent manufacturing standards ensure that metal oxide arresters with all-insulated compound coats meet the demanding requirements of modern electrical infrastructure protection.
Applications and Impact on Electrical Infrastructure Protection
Deployment in Various Electrical Systems
Metal oxide arresters with all-insulated compound coats find applications across a wide spectrum of electrical infrastructure. In high-voltage transmission systems, these devices are installed on power lines and substations to protect against lightning strikes and switching surges. Medium-voltage distribution networks utilize these arresters to safeguard transformers and other critical equipment from overvoltages. In industrial settings, they play a vital role in protecting sensitive machinery and control systems from power quality issues. Even in residential and commercial buildings, these arresters are employed to protect electrical appliances and electronics from voltage spikes.
Contribution to System Reliability and Safety
The implementation of metal oxide arresters with all-insulated compound coats significantly enhances the reliability and safety of electrical infrastructure. By effectively suppressing voltage surges and transients, these devices reduce the risk of equipment failure and downtime. This protection is particularly crucial for critical infrastructure such as hospitals, data centers, and industrial facilities, where power interruptions can have severe consequences. The improved durability provided by the all-insulated compound coat ensures long-term protection, reducing maintenance requirements and extending the lifespan of both the arresters and the protected equipment.
Economic Impact and Cost-Benefit Analysis
While the initial investment in high-quality metal oxide arresters with all-insulated compound coats may be higher than traditional protection devices, the long-term economic benefits are substantial. The reduced incidence of equipment damage and downtime translates to significant cost savings in repairs and lost productivity. The extended service life of these arresters also minimizes replacement costs over time. Furthermore, the enhanced reliability of electrical systems protected by these devices can lead to improved customer satisfaction and reduced liability risks for utility companies and industrial operators. When considering the potential costs associated with unprotected electrical infrastructure, the investment in advanced surge protection technology becomes a prudent and economically sound decision.
Conclusion
Metal oxide arresters with all-insulated compound coats represent a significant advancement in electrical infrastructure protection. Their ability to provide rapid, reliable surge suppression, combined with enhanced durability and environmental resistance, makes them indispensable components in modern power systems. As electrical networks continue to evolve and face new challenges, the role of these advanced arresters in ensuring system stability and safeguarding critical equipment becomes increasingly vital. By investing in this technology, operators of electrical infrastructure can significantly improve reliability, reduce maintenance costs, and enhance the overall resilience of their systems.
