What are some ways to improve the insulation performance of intelligent vacuum circuit breakers?

Improving the insulation performance of intelligent vacuum circuit breakers is a systematic project involving multiple aspects, including the vacuum interrupter itself, external insulation, electric field design, material selection, and intelligent monitoring. The following are detailed technical measures and methods:

I. Core Component: Insulation Optimization of the Vacuum Interrupter

The vacuum interrupter is the "heart" of the circuit breaker, and its internal insulation is fundamental.

High Vacuum Guarantee and Maintenance:

Manufacturing Process: Advanced venting and baking processes are employed to ensure that the vacuum level inside the interrupter reaches and is maintained above 10⁻⁴ Pa. This is the basis for ensuring internal insulation strength.

Material Outgassing Rate: Internal materials (such as contacts, shielding covers, and ceramic shells) are rigorously selected, using materials with low outgassing rates to prevent gas release under high arc temperatures, which would lead to a decrease in vacuum level.

Bragging Process: Highly reliable ceramic-metal sealing technology is used to ensure that the interrupter maintains strict sealing throughout its entire lifespan.

Contact System Design and Materials:

Contact Shape Optimization: Contacts designed with longitudinal magnetic field (AMF) or transverse magnetic field (TMF) not only effectively interrupt the arc but also ensure more uniform ablation of the contact surface, avoiding sharp burrs and maintaining high insulation strength between contacts.

Contact Materials: High-quality alloy materials such as copper-chromium (CuCr) are used. These materials have low current cutoff, high thermal conductivity, high electrical strength, and good resistance to welding, and can withstand high voltage without easily breaking down.

Internal Shielding Optimization:

The design and arrangement of the shielding (equalizing ring) are crucial. It can:

Use a uniform electric field: Improve the electric field distribution inside the arc-extinguishing chamber and prevent localized electric field concentration.

Adsorb metal vapor: Condense the metal vapor generated during arc interruption, preventing it from depositing on insulating components (such as the ceramic shell) and forming a conductive film.

Insulating Shell:

High-alumina ceramic is used as the shell of the arc-extinguishing chamber. High-alumina ceramics possess extremely high mechanical strength, excellent insulation properties, and a thermal expansion coefficient similar to that of metals, making them key to achieving reliable sealing and long-term insulation.

II. Improvement of External and Phase-to-Phase Insulation

This refers to the insulation portion outside the vacuum interrupter.

Solid Insulation Materials:

Using High-Performance Epoxy Resin: Epoxy resin insulating cylinders or sealed poles are manufactured using a vacuum casting process (APG process). This process completely eliminates air bubbles, forming a dense, defect-free solid insulation.

Adding Inorganic Fillers: Adding micron/nano-scale fillers such as alumina (Al₂O₃) and silica (SiO₂) to epoxy resin can significantly improve its thermal conductivity, mechanical strength, and tracking resistance.

Silicone Rubber Applications: For outdoor or high-humidity environments, high-temperature vulcanized silicone rubber (HTV) is used as external insulation due to its excellent hydrophobicity and UV resistance.

Gas Insulation Medium:

Air Insulation: Insulation capability is improved by increasing the creepage distance and clearance. A well-designed skirt structure enhances protection against flashover.

Gas-Filled Insulation: The circuit breaker is housed in a sealed enclosure and filled with dry air, nitrogen (N₂), or sulfur hexafluoride (SF₆) as a substitute gas (such as a mixture of fluoroketones and fluoronitriles). These gases have significantly higher insulation strength than air and prevent condensation, making them particularly suitable for harsh environments such as high altitudes and high humidity.

Structural Design and Electric Field Optimization:

Increasing Creepage Distance: Effective creepage distances are increased when designing insulator surfaces to cope with polluted environments.

Eliminating Sharp Angles and Burrs: All conductive and insulating components should have rounded edges to avoid electric field concentration.

Computer-Aided Electric Field Simulation: Finite Element Analysis (FEA) software is used during the design phase to accurately simulate the three-dimensional electric field of the entire unit, identifying and optimizing areas with excessively high electric field strength, thus eliminating insulation weaknesses at the source.

III. Intelligent Monitoring and Condition Assessment

The core of the "intelligent" aspect lies in predicting and preventing insulation faults through monitoring.

Online Vacuum Monitoring:

The vacuum level inside the vacuum interrupter is monitored in real time using a built-in magnetic discharge sensor or a coupled capacitive sensor. An early warning is issued immediately upon detecting a trend of vacuum deterioration to prevent "vacuum loss" accidents.

Partial Discharge (PD) Monitoring:

This is one of the most effective means of assessing insulation health. The intelligent circuit breaker integrates a high-frequency current transformer (HFCT), ultra-high frequency (UHF), or ultrasonic sensor to monitor for internal partial discharges online.

By analyzing the amplitude, frequency, and pattern of partial discharges, it is possible to determine whether defects such as bubbles, metal particles, and surface contamination exist inside the insulation, enabling predictive maintenance.

Mechanical Characteristic Monitoring and Correlation:

Mechanical parameters such as opening and closing speeds, stroke curves, and contact wear are monitored. Too slow an opening speed leads to prolonged arc burning time, increased gas production, and damage to vacuum insulation; too fast a speed may cause mechanical vibration and generate metal particles. The intelligent system can correlate and analyze the mechanical condition with the electrical insulation condition. Environmental Parameter Monitoring:

Integrated temperature and humidity sensors monitor the temperature and humidity of the circuit breaker's operating environment. In cases of excessively high humidity, the heater can be activated to prevent condensation, or environmental background data can be provided for insulation condition assessment.

Summary

Improving the insulation performance of intelligent vacuum circuit breakers requires a multi-layered and comprehensive strategy:

Only by deeply integrating excellent manufacturing processes, advanced materials science, optimized structural design, and digital intelligent monitoring technology can the insulation reliability of intelligent vacuum circuit breakers be fundamentally improved, ensuring the safe and stable operation of the power grid.

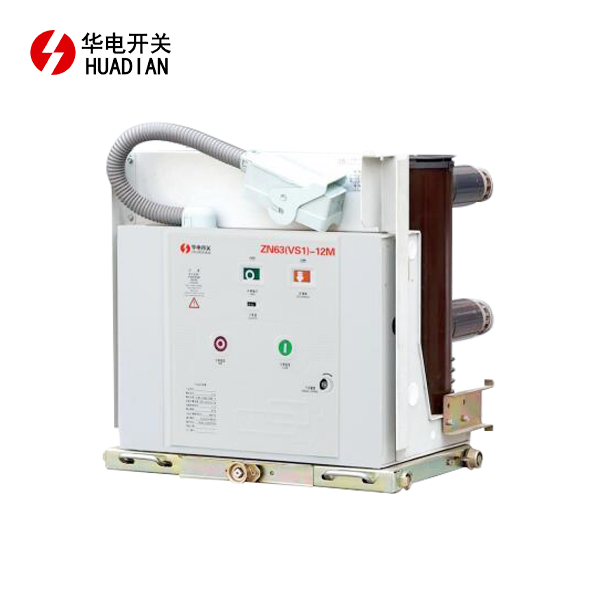

Shaanxi Huadian's intelligent vacuum circuit breakers, from their core vacuum interrupter chamber to their precision operating mechanism, are meticulously crafted with every component rigorously tested to ensure accurate execution of opening and closing commands even in the most demanding environments, thus building the strongest defense for power grid safety. Whatever your needs, Shaanxi Huadian always has a product to precisely match.
