What are some methods to improve the insulation performance of intelligent vacuum circuit breakers?

Improving the insulation performance of intelligent vacuum circuit breakers is key to ensuring their safe and reliable operation. This can be achieved through the following aspects:

1. Optimize Vacuum Interruptor Design



Improve Vacuum Level: Ensure the vacuum level inside the interruptor is maintained at a high level (typically below 10⁻⁴ Pa) to reduce the risk of breakdown caused by gas molecules.

Improve Shield Structure: Optimize the shape and material of the shield to achieve a uniform electric field distribution and avoid partial discharge.

Reinforce Contact Materials: Use arc-resistant, low-current-cutting-value contact materials (such as copper-chromium alloys) to reduce the impact of arc products on insulation.



2. Improve the performance of solid insulation components.



Select high-performance insulation materials, such as epoxy resin and silicone rubber, to improve resistance to high temperatures and arc aging.

Optimize insulation structure design: Employ composite or multi-layer insulation structures to reduce electric field concentration.

Improve surface insulation: Prevent flashover caused by surface contamination and condensation by increasing creepage distances, adding skirt structures, or applying anti-flashover coatings (such as RTV coatings).



3. Optimize Electric Field Distribution and Shielding



Electric Field Simulation Analysis: Optimize electrode shape and insulation structure through finite element analysis to reduce the maximum electric field intensity.

Add Equalizing Shielding: Install metal shields or equalizing rings at high-voltage sections to improve electric field uniformity.



4. Enhanced Air Gap Insulation and Isolation Design



Increase Safety Distance: Properly design the air gap between live parts and grounded sections.

Use Inert Gas Filling: Fill non-vacuum sections (such as insulating bushings) with dry air, SF₆, or environmentally friendly gases (such as a mixture of N₂ and CO₂ gases) to improve insulation strength.



5. Intelligent Monitoring and Condition Maintenance

Integrated Insulation Condition Monitoring:

Installation defects are monitored in real time using partial discharge sensors.

Vacuum level is monitored (e.g., via magnetron discharge) to provide early warning of vacuum level drops.

Leakage current or dielectric loss factor is monitored online.

Environmental Control: Equipped with heaters and humidity sensors to prevent condensation; reinforced sealing design to prevent dust and moisture intrusion.



6. Process and Assembly Quality Control



Strict Cleanliness Control: Avoid residual metal particles or dust during assembly.

Vacuum Sealing Process: Ensure the sealing of the arc-extinguishing chamber welding and sealing.

Factory Testing: Strengthen power frequency withstand voltage, lightning impulse withstand voltage, and partial discharge tests to ensure insulation performance meets standards.



7. Application of New Materials and Technologies



Nano-Modified Insulating Materials: Add nanoparticles to epoxy resin and other matrices to improve mechanical strength and dielectric properties.

Superhydrophobic Coating: Apply superhydrophobic coatings to the insulating surface to reduce contamination adsorption and the risk of wet flashover.

Field Emission Suppression Technology for Vacuum Gap: Reduce the electron emission capability of the electrodes through surface treatment.



8. Structural Design and Integration Optimization



Modular Insulation Design: Modularize high-voltage components and insulate them independently to reduce mutual interference.

Enhanced Mechanical Stability: Prevent deformation or cracking of the insulation structure due to mechanical vibration or thermal stress.



Summary



Improving the insulation performance of intelligent vacuum circuit breakers requires a multi-pronged approach, with the core principles being:

Maintaining a high vacuum level (fundamental to the arc-extinguishing chamber);

Optimizing the electric field and materials (reducing stress concentration);

Integrating intelligent monitoring (providing early warning of insulation degradation);

Strict process control (ensuring manufacturing consistency).

Through these measures, the insulation reliability of the equipment under complex operating conditions can be significantly improved, its service life extended, and the high safety requirements of smart grids for circuit breakers met.

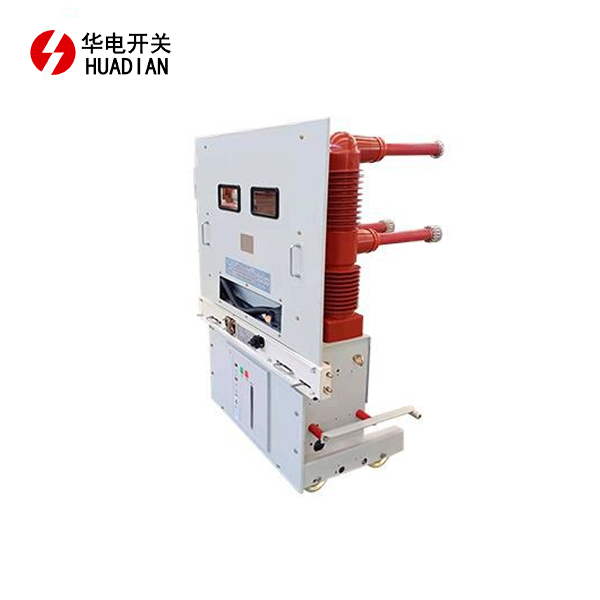

Shaanxi Huadian vacuum circuit breakers utilize high-vacuum arc-extinguishing technology, achieving insulation strength far exceeding that of traditional dielectrics. Drawing upon extensive experience in power equipment manufacturing, they employ rigorous processes. Contact information:pannie@hdswitchgear.com.
