What are the main functions and effects of a cable distribution box?
2026-01-09 16:11:15

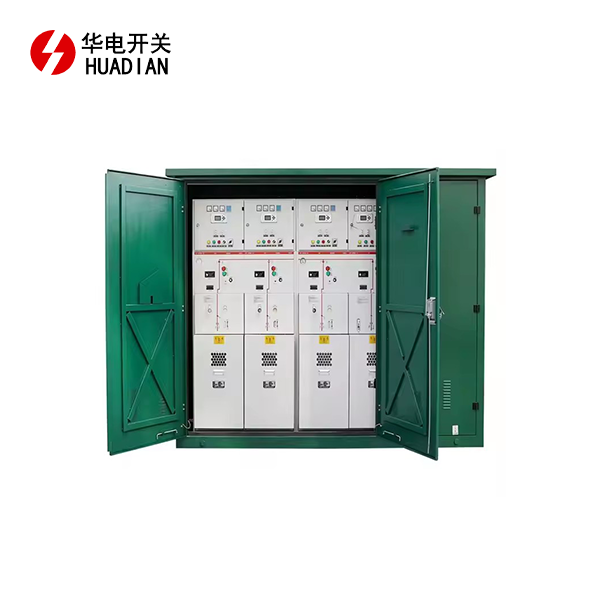

Cable distribution boxes are crucial nodal devices in power distribution networks. Their core functions can be summarized as: enabling efficient cable branching, safe isolation, flexible control, and reliable protection of cable lines, thereby improving the reliability, flexibility, and maintainability of the power distribution network.
The following is a detailed breakdown of its main functions and effects:
I. Core Basic Functions
Cable Splitting and Connection
Effect: Economically and conveniently distributes the power from a main cable to multiple branch cables, supplying power to different users or areas. This is its most basic function, avoiding the need to build a substation for each branch point, greatly saving costs and space.
Circuit On/Off and Load Current Control
Effect: Enables safe connection or disconnection of a branch line under load through an internal switch (load switch). Facilitates planned power outages for maintenance, line switching, or load adjustment without disconnecting the main power supply.
II. Key Safety and Protection Functions
Electrical Isolation and Safe Maintenance
Effect: When branch lines require maintenance, they can be clearly and reliably electrically isolated from the energized main line. Especially with European-style branch boxes, a "visible disconnect point" is provided, creating safe working conditions for maintenance personnel and preventing accidental electric shock.
Fault Isolation and Protection
Effect (Core Advantage of European-style Boxes): When a short circuit or overload fault occurs in a branch cable, the fuse or circuit breaker inside the box will quickly trip, automatically disconnecting the faulty line and strictly limiting the impact of the fault to that branch.
Importance: The main line and other healthy branch lines can continue to maintain power supply, thereby significantly reducing the power outage area and improving the overall power supply reliability and average power availability of the distribution network.
III. Functions for Enhancing Power Grid Operation
Forming Ring Network Power Supply Nodes
Effect: Multiple branch boxes (ring network cabinets) are connected by cables to form a daisy-chain ring network. When one power source fails, power can be restored from the other by operating a switch in the branch box, achieving flexible switching of power supply modes and improving power supply continuity.
Providing a Foundation for Intelligentization
Effect: Modern cable branch boxes can integrate control and measurement units (DTUs), communication modules, and sensors.
Intelligentization Effects: Enables remote monitoring of current, voltage, and switch status; automatic detection and reporting of fault locations; and even remote fault isolation and power restoration to non-faulty areas upon receiving commands from the master station. It is the physical foundation of distribution network automation (DA) and smart grids.
IV. Physical and Environmental Performance
Fully Insulated and Fully Sealed Protection
Effect: Whether it's the rubber insulation of the American-style enclosure or the gas insulation of the European-style enclosure, both achieve fully insulated encapsulation. The high protection rating (e.g., IP67) of the enclosure effectively prevents dust, water, moisture, corrosion, and small animals, enabling the equipment to be safely used in various harsh outdoor environments and reducing malfunctions caused by external factors.
Functionality Summary and Comparison (American vs. European)
| Functional Effects | American-style cable distribution box | European-style cable branch box |
|---|---|---|
| Tap-in and Connect | Perfectly achieves | Perfect Implementation |
| On/Off and Isolation | Achieves basic isolation (but no visible break) | Perfectly implemented with visible breakpoints, ensuring safer and more standardized operation. |
| Fault Protection | None, faults will cause upstream switches to trip | Core function: Actively isolates faulty branches. |
| Ring Network Construction | Not applicable | Core application: Standard ring network node. |
| Intelligent Infrastructure | Weak, difficult to expand | Powerful: Standard modules easily expandable with automation functions. |
| Environmental Adaptability | Excellent, fully insulated and sealed | Superior: Fully insulated and sealed. |
Summary
For power grid operators, the ultimate functional effects of cable distribution boxes are:
Improved power supply reliability: By implementing fault isolation and ring network functions, the frequency and scope of power outages are reduced.
Enhanced operation and maintenance efficiency and safety: Flexible line control and secure isolation are achieved, enabling remote intelligent operation and maintenance.
Enhanced grid flexibility and scalability: Network structure adjustments, load transfers, and new user onboarding are facilitated.
Reduced total lifecycle costs: Infrastructure investment is saved, fault losses are reduced, and operation and maintenance costs are lowered.
In short, cable distribution boxes are the "transportation hubs" and "safety guardians" of the distribution network, making power distribution more flexible, safer, and more reliable. Among them, European-style distribution boxes, due to their powerful protection and control functions, have become the mainstream choice for modern smart distribution networks.
We offer a variety of configuration options: from classic American-style cable junction boxes (extremely economical) to compact European-style junction boxes with integrated simple isolation functions, meeting your different budgets and functional needs. Shaanxi Huadian will tailor the most suitable power distribution connection point solution for you. For more information, please contact us:pannie@hdswitchgear.com.
